ISSN: 2455-815X
International Journal of Agricultural Science and Food Technology
Research Article       Open Access      Peer-Reviewed

RP-HPLC determination of Furosine in fermented milk of different brands retailed in China

Mekonen Tekliye, Xu Pei and Mingsheng Dong*

College of Food Science and Technology, Nanjing Agricultural University, 1 Weigang Road, Nanjing, Jiangsu 210095, PR China
*Corresponding author: Mingsheng Dong, College of Food Science and Technology, Nanjing Agricultural University, 1 Weigang Road, Nanjing, Jiangsu 210095, PR China, Tel: +86 135 1253 4561; E-mail: dongms@njau.edu.cn
Accepted: 30 July, 2019 | Received: 12 August, 2019 | Published: 13 August, 2019
Keywords: Furosine; Chemical parameter; Fermented milk; Heat treatment; RP-HPLC analysis; China

Cite this as

Tekliye M, Pei X, Dong M (2019) RP-HPLC determination of Furosine in fermented milk of different brands retailed in China. Int J Agric Sc Food Technol 5(1): 064-067. DOI: 10.17352/2455-815X.000044

Furosine (𝜀-N-2-furoylmethyl-L-lysine) is the most specific suitable indicator of the severity of heat treatment and storage conditions of dairy products. The objective was to determine furosine content in fermented milks by ion-pair reversed-phase high-performance liquid chromatography (RP-HPLC). In this study, furosine quantified in 27 different brands of fermented milk retailed in China. The concentrations of furosine in the fermented milk ranged from 25.40 ± 5.2 to 1661.05 ± 89.9 mg/100 g of protein. About 26 % of the samples in the present study had shown remarkably a very high furosine mean values. Furosine may, therefore, be a good indicator of the degree of Maillard reaction induced damage during the processing of fermented milks.

Abbreviations

RP-HPLC: Reversed-Phase High-Performance Liquid Chromatography; UV: Ultraviolet; UHT: Ultra-High Temperature; ESL: Extended Shelf-Life; IEC: Ion-Exchange Chromatography.

Introduction

Heat treatment of milk is the most widely used processing technology in the dairy industry. It results in many chemical and biochemical changes in milk, the extent of which depends on the temperature-time combinations, the heating method utilized, and milk pre-treatment conditions [1-3]. The principal categories of treatment methods used for milk for direct consumption and those used for specific dairy products are in-container sterilization, UHT, ESL processing, and pasteurization [4,5].

The quality of milk is affected by heating treatments as a consequence of interactions between the amino acid lateral groups, restructuring of –SH and S–S– groups, insolubilizations of whey protein, interactions between k-casein and β-lactoglobulin, hydrolysis of lipids, degradation of lactose to organic acids, destruction of some vitamins and enzymes, and disturbance of calcium/phosphorous equilibrium [6,7]. Effects during the heating of milk; Firstly, the effect on milk components of particular interest for keeping quality and nutritional properties of milk. The second type of effects related to cooked flavor and loss of nutritional value due to the formation of new substances formed by Maillard reaction, which continues during the storage of heated milk [8].

Furosine (𝜀-N-2-Furoylmethyl-L-lysine) is an amino acid formed during acid hydrolysis of the main stable Amadori compound (𝜀-deoxy-fructosyllysine), and used to measure the initial steps of the Maillard reaction [9,10]. It is considered a useful indicator of the severity of heat treatment, Maillard reaction related to the identification of limiting values of thermal damage, and poor storage conditions of the finished products [7,11-14]. In addition, furosine is a useful chemical parameter for evaluating the quality and possible detection of food frauds, especially in milk and milk-based products, such as yogurt and milk powders [15-17].

Determinations of furosine could be carried out by gas chromatography, IEC and HPLC. Now, HPLC is the technique of choice since it provides the best detection limit and is not time-consuming [7,18,19]. More recently, [12] proposed an ion-pair reversed-phase HPLC method for the determination of furosine in acid-hydrolyzed dairy products. At present, no published data available on the furosine contents of fermented milk in China. This study was, therefore, conducted to determine furosine content in fermented milk retailed in China by ion-pair reversed-phase high-performance liquid chromatography.

Materials and Methods

Samples

Twenty-seven different commercial brands of fermented milk samples retailed in China were purchased. Their expiration dates ranged from July 2018 to March 2019. Samples were kept frozen after aliquoted until further analyses. All analysis was done in triplicate unless otherwise indicated.

Reagents and standards

All reagents used for sample preparation were of analytical grade, and solvents for chromatographic analysis were of HPLC grade. Throughout all experiment, ultrapure water was used (SG Ultra Clear UV system; Siemens Water 95 Technologies, Warrendale, PA, USA). All reagents required for experimental analysis were purchased from Sigma-Aldrich (St. Louis, MO, USA) including Acetonitrile (ACN, 100%), Hydrochloric acid (37%), Methanol (99.8%), Formic acid (FA, 98%), Trifluoroacetic acid (TFA, 99%). Furosine standard (furosine dihydrochloride; 99.1%) purchased from Iris Biotech Laboratories GmbH (Marktredwitz, Germany).

RP-HPLC conditions

Column type: C18; Length: 250 mm; I.D. 4.6 mm (Alltech Furosine-dedicated); Column temperature: 30°C; U.V. detection: 280 nm; Flow rate: 0.6 mL/min; Injection volume: 10μL; Runtime: 30min; Solvent A: 0.1% Trifluoroacetic acid solution; Solvent B: Methanol; HPLC apparatus: Waters Model 2996. The elution gradient is given in Table 1.

RP-HPLC analysis of furosine with UV detection

For determination of furosine content, samples were prepared according to [12,20-22] with very few modifications in sample preparation. Briefly, all samples were pre-warmed in a water bath set at 40 oC for 15 min, to get a homogeneous solution. 2mL of fermented milk samples were mixed with 6mL of 10.6 N hydrochloric acid and exposed to nitrogen for 2 min, expelling oxygen. Subsequently, tubes were closed tightly and heated at 110 oC for 23 h for acid hydrolysis in screw-cap Pyrex® tubes. The hydrolysate was brought to room temperature and filtered through a Whatman 5951/2 filter paper. The filtrate was further processed using reversed-phase solid-phase extraction (SPE) Sep-Pak C18 cartridge (Waters Corporation, Milford, MA 01757, USA). 0.5 mL of the filtrate was eluted with 3 mL of 3 N hydrochloric acid and evaporated under vacuum. 1mL of the dried samples were reconstituted with 3.5 mL of a mixture of 5% v/v acetonitrile/0.2% v/v formic acid and filtered through a 0.22-µm filter (Millex PVDF; Millipore) before HPLC injection. Eighty microlitres of each sample injected onto a SUPELCO C18 column (5μm, 250 × 4.6 mm, I.D.) (Waters Corporation, MA, USA). Calibration of the chromatographic system for furosine (FUR) determination was by the external standard method. A standard stock solution containing 200 µg FUR mL-1 was used to prepare the standard working solution. Calibration curves (0, 2, 4, 8, 16 32, 64 and 128 µg FUR mL-1) were carried out by plotting absorbance, with the peak area as the ordinate and the furosine concentration is the abscissa. The regression equation for the standard curve: y = 35.414x + 9.2669; R2 = 0.9997. The obtained results presented as mg/100 g of protein (Table 2). The furosine value usually expressed as mg/100 g of protein [23].

Determination of total protein content

The total nitrogen content determined according to [24] Kjeldahl method and required for the final furosine calculation of samples. A factor of 6.38 was applied to convert nitrogen values to protein.

Statistical analysis

All experimental analysis was carried out in triplicate, and the results are expressed as means ± standard deviation (SD). Calculations of mean values, standard deviations, and correlation coefficient (R2) accomplished with Microsoft Excel 2016. The obtained data were analyzed with one-way analysis of the variance (ANOVA)and post-tested by Tukey test using GraphPad.Prism.7.00 software and differences were considered significant at P < 0.05, with a 95% confidence interval.

Results and Discussion

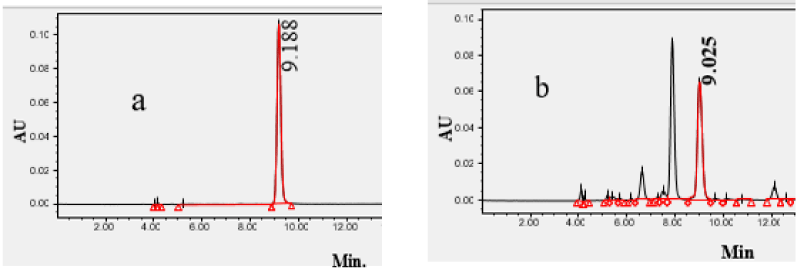

The typical HPLC chromatograms of furosine standard and fermented milk are presented in figure 1 and compared to the data reported by different authors [7,12,25], a shorter retention time observed in our investigation. This difference observed in the present study may arise from a variety of factors, including the type of column used and chromatographic conditions elaborated in the method.

Table 2 shows the results of concentrations of furosine in all investigated samples. The concentrations of furosine in the fermented milk of different brands ranged from 25.40 ± 5.2 to 1661.05 ± 89.9 mg/100 g of protein. Nearly 26 % of the samples in the present study had shown significantly higher furosine mean values than reported by other authors [26]. Remarkably, sample CF, JC, and XM showed a very high mean furosine content. The highest concentration of furosine obtained could be because of the addition of milk powder into fermented milk [27,28]. According to a report of the previous studies [28-32], the amount of furosine related to the hydrolysis of the amino acid, the temperature of the production process and duration of exposure to the temperature, as well as storage temperature of the finished product. Likewise, milk proteins which are rich in lysine residues are prone to Maillard reaction, and consequently, the Amadori product rapidly formed under slight heating conditions [33].

The concentration of furosine on dairy products is used as an indicator for assessing the effects of the thermal treatments applied to milk and, also serves as a chemical parameter useful for nutritional evaluation of foods regarding protein and lysine contents, as an estimate of protein quality [33]. The intermediate and end-products of Maillard reactions, i.e., furosine, which is produced when milk and milk products are heated, exert toxicological consequences such as potent neuro-toxicants to human. Furthermore, High doses of furosine cause adverse effects on health by inducing cell apoptosis and activation of inflammatory [34,35].

On the other hand, about 74% of the samples had shown a furosine level below 300 mg/100 g of protein. These results are in disagreement with other authors [36] who found furosine content of 316.47 ± 0.17 mg/100 g of protein in the fermented milk. The lower furosine content obtained in this study may indicate features of the production lines like heating under reduced pressure and falling film evaporation technology [37].

A statistically significant difference observed (p < 0.05) in furosine concentrations between the different brands of fermented milk, as shown in table 2. The significant variability found between samples is probably due to the heat-treatment intensity given to fermented milk and fermented milk-making conditions [26]. It is difficult to compare the furosine content of the present study with those of previous work because of very few published data found concerning the furosine content in fermented milk.

Acceptable levels of furosine 3 to 5.5, 4 to 7, and 220 to 372 mg/100 g protein for raw milk, pasteurized milk, and sterilized milk, respectively [11,38,39]. However, to the best of authors knowledge, there was no specification set for the maximum permissible level of furosine in fermented milk in China.

Conclusions

The present study investigated the quantitative analysis of furosine content in fermented milk retailed in China. The method was highly sensitive and rapid for the determination of furosine in dairy products such as yogurt and other fermented milk. According to the obtained results, careful attention to the quality of fermented milk required because of the abnormal increment of furosine concentrations observed and detected differences. This study also suggests an urgent need for the maximum legal limits of furosine in fermented milk.

The authors gratefully acknowledge the Jiangsu Agricultural Industry Technology System for research funds (No JATS-2018-296).

  1. Pieter Walstra, Jan TM Wouters, Tom J Geurts (2005) Dairy science and technology(2nd edn). CRC Press, 808. Link: http://bit.ly/2KA24vO
  2. Kulmyrzaev A, Dufour E (2002) Determination of lactulose and furosine in milk using front-face fluorescence spectroscopy. Lait 82: 725-735. Link: http://bit.ly/2Tpxb1e
  3. Boitz LI, Mayer HK (2015) Evaluation of furosine, lactulose and acid-soluble β-lactoglobulin as time-temperature integrators for whipping cream samples at retail in Austria. International Dairy Journal 50: 24-31. Link: http://bit.ly/2MTCGUC
  4. Deeth HC, Lewis MJ (2017) High temperature processing of milk and milk products. John Wiley & Sons. Link: http://bit.ly/2ZUEQY3
  5. Schmidt A, Boitz LI, Mayer HK (2017) A new UHPLC method for the quantitation of furosine as heat load indicator in commercial liquid milk. Journal of Food Composition and Analysis, 56: 104-109. Link: http://bit.ly/2MVXFq3
  6. Rufian-Henares JA, Guerra-Hernandez E, Garcıa-Villanova B (2002) Maillard reaction in enteral formula processing: furosine, loss of o-phthaldialdehyde reactivity, and fluorescence. Food Research International, 35: 527-533. Link: http://bit.ly/2Md9Fnt
  7. Ferrer E, Alegría A, Courtois G, Farré R (2000) High-performance liquid chromatographic determination of Maillard compounds in store-brand and name-brand ultra-high-temperature-treated cows’ milk. J Chromatogr A 881: 599-606. Link: http://bit.ly/2YIwMgu
  8. Elliott AJ, Datta N, Amenu B, Deeth HC (2005) Heat-induced and other chemical changes in commercial UHT milks. J Dairy Res 72: 442-446. Link: http://bit.ly/2yVkrWF
  9. Finot PA, Deutsch R, Bujard E (1981) Extent of the maillard reaction during the processing of milk. Progress in food and nutrition science 5: 345-355. Link: http://bit.ly/2ZVpF0E
  10. Manzo C, Nicolai MA, Pizzano R (2015) Thermal markers arising from changes in the protein component of milk. Food Control 51: 251-255. Link: http://bit.ly/2Me2I5r
  11. Resmini P, Pellegrino L (1991) Analysis of food heat damage by direct HPLC of furosine. International Chromatography Laboratory 6: 7-11. Link: http://bit.ly/2KsK4oh
  12. Resmini P, Pellegrino L, Battelli G (1990) Accurate quantification of furosine in milk and dairy products by a direct HPLC method. Italian Journal of Food Science 2: 173-183. Link: http://bit.ly/2yRYk3p
  13. Resmini P, Pellegrino L, Masotti F (1993) Evaluation of the extent of the Maillard reaction for the quality control of low-heat-treated dairy products. Int Dairy Fed Spec 153-164. Link: http://bit.ly/2YKgaVy
  14. Nieves Corzo, Teresa Delgado, Esperanza Troyano, Agustin Olano (1994) Ratio of lactulose to furosine as an indicator of quality of commercial milks. Journal of Food Protection 57: 737-739. Link: http://bit.ly/2KwliUC
  15. De La Fuente MA, Juárez M (2005) Authenticity assessment of dairy products. Critical Reviews in Food Science and Nutrition, 45: 563-585. Link: http://bit.ly/2N0Gu6D
  16. Resmini PP, Luisa Pellegrino, Cattaneo S (2003) Furosine and Other Heat-Treatment Indicators for Detecting Fraud in Milk and Milk Products. Italian journal of food science, 15: 473-484. Link: http://bit.ly/33wwdov
  17. Tirelli A, Pellegrino L (1995) Determination of furosine in dairy products by capillary zone electrophoresis: a comparison with the HPLC method. Italian journal of food science 7: 379-385. Link: http://bit.ly/2YP29pL
  18. Büser W, Erbersdobler HF (1985) Determination of furosine by gas-liquid chromatography. Journal of Chromatography A 346: 363-368. Link: http://bit.ly/2KJIUnD
  19. Hartkopf J, Erbersdobler HF (1993) Stability of furosine during ion-exchange chromatography in comparison with reversed-phase high-performance liquid chromatography. Journal of Chromatography A 635: 151-154. Link: http://bit.ly/2MXSXrW
  20. Serrano MA, Castillo G, Muñoz MM, Hernández A (2002) Influence of hydrolysis, purification, and calibration method on furosine determination using ion-pair reversed-phase high-performance liquid chromatography. Journal of chromatographic science 40: 87-91. Link: http://bit.ly/2TtXenZ
  21. Boitz LI, Mayer HK (2016) Analytical assessment of the intense heat load of whipping cream, coffee cream, and condensed milk at retail in Austria and Germany. Dairy science & technology 96: 677-692. Link: http://bit.ly/2YVCLd3
  22. Helmut K. Maye, Bernd Raba, Johannes Meier, Anita Schmid (2010) RP-HPLC analysis of furosine and acid-soluble β-lactoglobulin to assess the heat load of extended shelf-life milk samples in Austria. Dairy science & technology 90: 413-428. Link: http://bit.ly/2yVmIRH
  23.  Montilla A, Olano A (1997) Effect of the protein content and dilution on the lactulose/furosine ratio in heat-treated milk. Link: http://bit.ly/2P82uiT
  24. Tremblay L, Laporte MF, Léonil J, Dupont D, Paquin P (2003) Quantitation of proteins in milk and milk products. Advanced Dairy Chemistry-1 Proteins 49-138. Link: http://bit.ly/2P82Bej
  25. Delgado T, Corzo N, Santa Maria G, Jimeno ML, Olano A (1992) Determination of furosine in milk samples by ion-pair reversed-phase liquid chromatography. Chromatographia 33: 374-376. Link: http://bit.ly/2TqoqE2
  26. De Noni I, Pellegrino L, Masotti F (2004) Survey of selected chemical and microbiological characteristics of (plain or sweetened) natural yoghurts from the Italian market. Lait 84: 421-433. Link: http://bit.ly/2TAxKpj
  27. Mortier L, An Braekman, Dagmar Cartuyvels, Roland Van Renterghe (2000) Intrinsic indicators for monitoring heat damage of consumption milk. Biotechnol Agron Soc Environ 4: 221-225. Link: http://bit.ly/2YYd9vW
  28. Resmini P, Masotti F, Tirelli A, Prati F (1992) Detection of reconstituted milk powder in raw and in pasteurized milk by direct HPLC of furosine. Scienza e Tecnica Lattiero Casearia (Italy) 43: 169-186. Link: http://bit.ly/30132YO
  29. Baptista JA, Carvalho RC (2004) Indirect determination of Amadori compounds in milk-based products by HPLC/ELSD/UV as an index of protein deterioration. Food Research International 37: 739-747. Link: http://bit.ly/2ZV1lMs
  30. Ferrer E, Alegrı́a A, Farré R, Abellán P, Romero F (2002) High-performance liquid chromatographic determination of furfural compounds in infant formulas: Changes during heat treatment and storage. Journal of Chromatography A 947: 85-95. Link: http://bit.ly/2YHtwBK
  31. Garcı́a-Baños JL, del Castillo MD, Sanz A, Olano ML, Corzo N (2005) Maillard reaction during storage of powder enteral formulas. Food chemistry 89: 555-560. Link: http://bit.ly/2KwJw0Q
  32. Resmini P, Pellegrino L (1994) HPLC of furosine for evaluating Maillard reaction damage in skim milk powders during processing and storage. Federation Internationale de Laiterie; International Dairy Federation 31-36. Link: http://bit.ly/33zdvNl
  33. Erbersdobler HF, Somoza V (2007) Forty years of furosine–Forty years of using Maillard reaction products as indicators of the nutritional quality of foods. Mol Nutr Food Res 51: 423-430. Link: http://bit.ly/33uxJYp
  34. Lubec G, Wolf C, Bartosch B (1989) Amino acid isomerization and microwave exposure. Lancet 2: 1392-1393. Link: http://bit.ly/2KtUWCo
  35. Li HY, Xing L, Wang JQ, Zheng N (2018) Toxicology studies of furosine in vitro/in vivo and exploration of the related mechanism. Toxicol lett 291: 101-111. Link: http://bit.ly/2OToLAQ
  36. Ozlem T, Sibel AA, Kemal U (2006) Rapid High Performance Liquid Chromatographic Detection of Furosine.Journal of Food Quality 29: 38-46. Link: http://bit.ly/2yTGpcD
  37. Walstra P, Wouters JT, Geurts TJ (2006) Dairy Science and Technology Second Edition. Food Science and Technology-New York-Marcel Dekker 147. Link: http://bit.ly/2Z2tj7s
  38. Thomas Henle, Günther Zehetner, Henning Klostermeyer (1995) Fast and sensitive determination of furosine. Zeitschrift für Lebensmittel-Untersuchung und Forschung 200: 235-237. Link: http://bit.ly/2ZYTiy3
  39. Van Renterghem R, Jan De Block (1996) Furosine in consumption milk and milk powders. International Dairy Journal 6: 371-382 . Link: http://bit.ly/2z74LA1
© 2019 Tekliye M, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
