Detection of Viable but Nonculturable Escherichia coli O157:H7 in Ground Beef by Propidium Monoazide real-time PCR

Escherichia coli O157:H7 is an important foodborne pathogen that causes gastrointestinal illness as well as life-threatening diseases [1]. This pathogen can colonize the intestinal tract of cattle and make its way into beef products during slaughtering and subsequent processing. The infectious dose of E. coli O157:H7 ranges from 10-100 cells and as low as fewer than 50 viable E. coli O157:H7 cells can lead to serious outbreaks [2]. Furthermore, this pathogen has the potential to enter into the viable-but-nonculturable state [3]. In such a state, cells fail to grow and form colonies on commonly used selective media for their detection, but remain alive and retain their metabolic activities [4]. In fact, pathogenic bacteria can be avirulent in the VBNC state but regain virulence after resuscitation into culturable cells under suitable conditions [5]. Reissbrodt et al. (2002) [6], reported that VBNC cells may resuscitate in the presence of certain growth promoters or enrichments. Some VBNC cells are still virulent and even cause fatal infections, which may be due to their rapid resuscitation in suitable hosts [5,7]. In E. coli O157:H7, the expression of multiple virulence genes, including the Shiga toxin genes, stx1 and stx2 genes, can still occur in VBNC cells [8] and strains of this bacterium in the VBNC state can become culturable again in the presence of the antioxidant, oxyrase, the enterobacterial autoinducer or sodium pyruvate [9].

The distinction between viability and culturability is especially critical for pathogens, because loss of culturability may not guarantee loss of pathogenicity. If pathogenicity persists, pathogens in the dormant (VBNC) state may, in fact, pose a heretofore unrecognized public health threat [10]. The occurrence and persistence of VBNC cells that retain pathogenicity or are able to recover from this state is a public health concern since they may constitute an unrecognized source of infection [11]. In fact, because cells of E. coli O157:H7 in the VBNC state retain virulence, they should be considered as risks to public health [12].

Conventional culture-based methods involving enrichment, isolation and confirmation steps, are commonly used for detection of foodborne pathogens [13]. However, culture-based methods may considerably underestimate true bacterial cell counts when a fraction of E. coli O157:H7 cells in a sample is nonculturable [14]. Molecular methods, such as the polymerase chain reaction (PCR), are increasingly used for detection of VBNC cells [15], because they do not rely on colony growth. However, conventional PCR cannot differentiate viable cells from dead cells because DNA from dead cells can serve as a template during PCR amplification [16]. Our previous publications [17-19], have shown that DNA-intercalating agents, such as propidium monoazide (PMA) and ethidium monoazide (EMA) can be used in conjunction with a PCR assay to selectively detect viable cells. These dyes can penetrate membrane-damaged cells and covalently bind to cellular DNA, thus preventing DNA amplification from dead bacteria and enabling exclusive detection of viable cells [20-22].

This study aimed to determine if E. coli O157:H7 could adapt to the stress caused by lactic acid by entering the VBNC state, and to evaluate the applicability of a PMA-qPCR to detect and quantify VBNC cells of this pathogen. The performance of this PMA-qPCR method was assessed using pure culture and ground beef samples spiked with lactic acid induced VBNC E. coli O157:H7 cells.

Preparation of viable E. coli O157:H7 cells

E. coli O157:H7 strain 505B (a beef isolate) was obtained from the culture collection of the Food Microbiology Laboratory, University of Missouri Columbia (Columbia, MO, USA). The strain was grown overnight in Tryptic Soy broth supplemented with 0.5% yeast extract (TSBY, Difco Labs., Sparks, MD, USA) at 37 °C until the numbers reached ~10⁹ CFU/mL as determined by plate counting on Tryptic Soy Agar (TSA) (Difco Labs.). Fresh overnight grown E. coli O157:H7 culture was serially diluted using 9 mL 0.1% peptone water, plated in TSA, and colonies enumerated after an overnight incubation at 37 oC.

PMA treatment

Serial dilutions (10-2 to 10-8) of a freshly grown culture of E. coli O157:H7 cells were prepared in 0.1% peptone water. Two milliliters of each diluted suspension were withdrawn and divided into two 1-mL suspensions in separate tubes. One set was used for DNA extraction without PMA treatment, whereas the other set was stained in the dark for 5 min with 25 μM PMA (Biotium Inc., Hayward, CA, USA), placed in ice and exposed to a 650-W halogen light at a distance of 20 cm for 10 min, as previously optimized and described by our group [17]. PMA treated cells were centrifuged at 12,000 ×g for 5 min, then washed under the same conditions in 1 mL 0.1% peptone water.

DNA isolation

DNA from the obtained cell pellets were isolated by resuspending in 100 μL of PrepMan^® Ultra Sample Preparation Reagent (Applied Biosystems, Foster City, CA, USA), according to the manufacturer’s instructions with minor modifications. In order to achieve a higher DNA yield, cell suspensions were heated at 100 °C in a dry bath incubator for 20 min. Boiled cell suspensions were centrifuged at 12000 ×g for 5 min and 10 μL of the supernatant was used as the template DNA to construct standard curves for quantitative purposes by real-time PCR assay.

Real-time PCR

Primers and probes targeting E. coli O157:H7 were designed by Wang et al. [23]. pUC19 plasmid DNA was used as an internal amplification control (IAC). Primers and probes targeting pUC19 were as designed by Fricker et al., 2007 [24] (Table 1).

Real time PCR was performed in a LightCycler^® 96 real-time PCR platform (Roche Diagnostics Corporation, Indianapolis, USA). A 25 μL PCR reaction mix consisted of 12.5 μL of 2× TaqMan™ Universal PCR Master Mix (Applied Biosystems), 0.5 μM of each E. coli O157:H7 primer, 0.4 μM of each IAC primer, 0.2 μM of E. coli and IAC probe, 0.25 pg of pUC19 (8.62 × 10⁴ copies) (Promega, Madison, WI, USA), and 5 μL template DNA. Nuclease-free water (Promega) was used to adjust the reaction volume to 25 μL [17]. The real-time PCR program consisted of 95 °C for 10 min, followed by 40 cycles of 95 °C for 15 s and 60 °C for 1 min. The concentration of E. coli O157:H7 (log CFU/mL) was determined based on a standard curve (Figure 1). Data from mean values of three independent experiments with duplicates were used to calculate the coefficient of regression (R²) values.

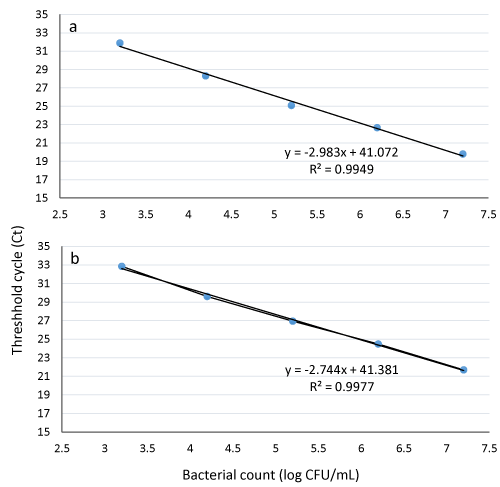

Figure 1: Standard curves for quantifying culturable E. coli O157:H7 cells in pure culture performed with 10-fold serial dilutions using propidium monoazide (PMA) real-time PCR (a) and real-time PCR without PMA pre-treatment (b).

Induction of VBNC cells

One milliliter of freshly grown E. coli O157:H7 (ca. 10⁹ CFU/mL) was diluted 100-fold in nutrient broth acidified with lactic acid (pH 3.0, 3.2, 3.3. 3.4 and 3.5) and subsequently incubated at 37 ºC. Samples were plated on TSA every 2 h after 10 h of incubation for up to 20 h for determining induction of the VBNC state. E. coli O157:H7 was considered to enter the VBNC state when no growth was observed on TSA plates. The same procedure was applied to obtain the counts of VBNC cells of different serial suspensions using real time PCR.

Culturability of E. coli O157:H7

Bacterial samples were serially diluted in 0.1% peptone water. One hundred microliters of appropriate dilutions were spread-plated on TSA and incubated at 37 C for 48 h to enumerate acid-stressed E. coli O157:H7 cells. When colonies ceased to occur on the agar, 1 mL of the samples was transferred to 9 mL of TSBY and incubated at 37 °C for 48 h to further test the culturability of the cells on TSA for another 48 h at 37 oC.

Preparation of artificially spiked samples

Ground beef (10% fat, 90% lean) was purchased from a local supermarket (Columbia, MO, USA) and tested for the presence of E. coli O157:H7 using standard culture methods [25]. Twenty-five grams of the ground beef samples were weighed in filtered stomacher bags (Fisherbrand, Houston, TX, USA) and artificially inoculated with different concentrations (10², 10³, 10⁴, 10⁵, 10⁶ and 10⁷ CFU/g) of VBNC E. coli O157:H7. Cells were allowed to attach at room temperature for 15 min. Then, each sample was diluted with 225 mL of lactose broth (Difco Labs.), and stomached in a Stomacher 400 (Seward Lab. Systems, Inc., Bohemia, NY and USA) for 2 min at high intensity. The homogenized ground beef suspension samples were briefly centrifuged (2000 ×g for 2 min) to separate out beef and fat particles. Two milliliters of the supernatant were divided into two 1-mL portions, each of which was transferred to two fresh centrifuge tubes. Bacterial cells were collected by centrifugation at 12,500 ×g for 5 min, and the obtained cell pellets were washed in sterile distilled water under the same centrifugation conditions. Real time PCR with or without PMA pre-treatment were conducted as described in the next section.

Detection of low concentrations of VBNC E. coli O157:H7 in ground beef by PMA real-time PCR

PMA treatment of one set of samples from the previous section was applied prior to DNA extraction, using PrepMan^® Ultra Sample Preparation Reagent (Applied Biosystems) as described above. One negative (un-inoculated) control for each sample was also included in the study. The extracted DNA was diluted 1:2. PCR conditions used for the two sets of DNA samples were the same as described above. Real-time PCR with IAC was performed to recognize the limit of detection of E. coli O157:H7 counts in spiked ground beef samples.

Statistical analysis

All experiments were performed in triplicate. Mean and pairwise mean comparisons were performed using Microsoft Office Excel 2007.

Quantitative differentiation of the live fraction of pathogens in raw food samples is highly critical from a public health risk perspective, as many studies have shown that under stressed conditions, major foodborne pathogens can enter a VBNC state. In this state, bacteria can remain alive for long periods of time and maintain their potential for virulence [26]. E. coli O157:H7 lost the ability to propagate after starvation in sea salt medium at 5 ºC for 70 days [3]. Wang and Doyle (1998) [27], reported that E. coli O157:H7 became nonculturable after 77 days in reservoir water or 70 days in lake water held at 25 ºC. The VBNC state of E. coli O157:H7 was also induced in 13% NaCl or after exposure to chlorine [28,29]. Previous research indicate that pH changes in media are related to a loss of culturability of bacterial cells. At 4 ºC, E. coli O157:H7 suspended in phosphate-buffered saline at pH 4 entered the VBNC state more rapidly than at pH 7 [29].

Lactic acid is widely used in food processing for reducing and eliminating pathogenic and spoilage organisms and helps to increase the shelf life of meats. It may be directly applied as a preservative ingredient or indirectly produced by natural microbial fermentation. While there have been numerous reports on the efficacy of this acid in improving food safety and quality, little is known about the occurrence of nonculturable E. coli O157:H7 in acidic foods.

In this study, the survival of E. coli O157:H7 in acidified nutrient broth was investigated in different pH and different periods in repeated experiments. Cells rapidly and significantly lost their culturability, as reflected by a rapid drop in culturable colony counts. The bacterial growth was not detected at pH 3 after 10 h, pH 3.2 after 18 h and pH 3.3 after 20 h of incubation at 37 oC (Table 2). A high degree of acid tolerance is an important feature of E. coli O157:H7 pathogen [30]. The minimum pH for E. coli O157:H7 growth is 4.0 to 4.5 [31].

To construct the standard curves, a fresh overnight grown E. coli O157:H7 culture was serially diluted using 0.1% peptone water and culturability was detected on TSA for determination of the initial bacterial count (2 × 10⁹ CFU/mL). Standard curves were generated (typical coefficient of determination above 98%) using PMA and non PMA real time PCR to estimate the counts of viable E. coli O157:H7. Figure 1a (PMA real-time PCR) shows a good linear reverse relationship between viable bacterial numbers and Ct values. Figure 1b (non-PMA real-time PCR) shows that the viable counts detected by culturing on TS agar are nearly in agreement with that obtained from standard curve without PMA treatment where the Ct values represent both live and dead cells (five points standard curve 103-107 cells/mL). By plugging the Ct value of an unknown sample into the standard curve generated by the PMA real time PCR (Figure 1a), the concentration of viable E. coli O157:H7 in the original sample can be estimated.

For induction of VBNC, 1 mL of an overnight E. coli O157:H7 fresh culture (2 × 10⁹ CFU/mL) was diluted 100-fold in nutrient broth followed by lactic acid treatment for 10 hat pH 3. Data in figure 2 shows that the bacterial counts of PMA treated samples were lower than non PMA treated samples (Ct value of the PMA real-time PCR was slightly higher than that of non-PMA real-time PCR with the same numbers of cells), indicating that the PMA had removed any influence of dead cell DNA from the PCR. In non-PMA treated samples, DNA of dead cells from the lactic acid treatment was amplified during the PCR, resulting in the failure to distinguish between DNA from dead or viable cells. This confirm that PMA, a DNA intercalating dye, can only penetrate dead or membrane-compromised cells and covalently bind to cellular DNA through photolysis, rendering the DNA insoluble and inhibit PCR amplification of DNA. This agrees with Nocker et al. (2006) [21], who mentioned that PMA is less likely to permeate viable cells and probably VBNC with intact membranes, as well as with our previous study [17].

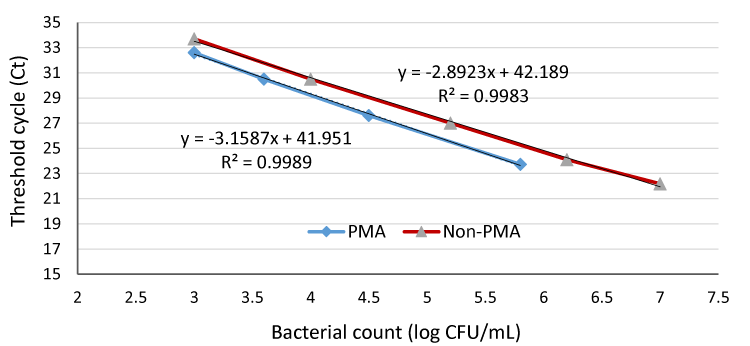

Figure 1: Quantification of VBNC and non-viable E. coli O157:H7 in pure culture samples with PMA and non-PMA real-time PCR.

From Figure 2, we can also notice that the Ct values increased with decreasing VBNC counts (10⁷-10² CFU/mL) in both PMA and non-PMA treated samples. The mean Ct values from replicates were not significantly different. For VBNC cells, the lowest detection limit of the PMA and non–PMA treatment was nearly 103 CFU/mL (Figure 3). A better sensitivity was reported by Xiao et al. (2013) [32] who determined that the quantification limit of a PMA–qPCR was 10² CFU/mL, providing sufficient sensitivity for detection of VBNC E. coli O157:H7 cells to no less than 100 CFU/mL.

Figure 3 shows that the quantification limits for VBNC cells were 4 × 10⁴ and 6.3 × 10³ CFU/g for PMA- and non-PMA real time PCR of spiked ground meat samples, respectively. PMA molecules could penetrate the pathogenic bacterial cells without being negatively influenced by the meat background microflora as the data showed that for all bacterial suspension examined, positive results were obtained from all trials with Ct values below 35. This would eliminate possible false-positive signals and overestimation results generated from dead cells or damaged cells that may be detected by using real time PCR alone. Nearly similar results were reported by Liu and Mustapha (2014) [17], who stated that the PMA real-time PCR could detect a range from 10⁵ to 10⁸ CFU/g of viable E. coli O157:H7, in ground beef samples regardless of whether dead cells were present or not. They added that substances naturally found in environmental and food samples may inhibit the amplification of target DNA in real-time PCR. This may be the reason for the relatively high detection limit of VBNC E. coli O157:H7 cells in ground beef (4 ×10⁴ CFU/g) in our study. Španová et al. (2000) [33], reported that food samples contain many organic and inorganic substances, such as phenolic compounds, fat, enzymes, polysaccharides, proteins and salts, all of which can either inhibit PCR amplification or lead to a reduction in amplification efficiency of PCR reactions. This detection limit (4 × 10⁴ CFU/g) in ground beef was not satisfactory with respect to the low infectious dose of E. coli O157:H7. Therefore, to use this procedure, a resuscitation or enrichment step would have to be incorporated especially when the initial concentration is low. In pure culture or spiked ground beef, the bacterial cells treated with PMA staining showed lower counts (the Ct values of PMA qPCR were 1–2 cycles higher than those of qPCR at the same numbers of cells), further highlighting the importance of an enrichment step.

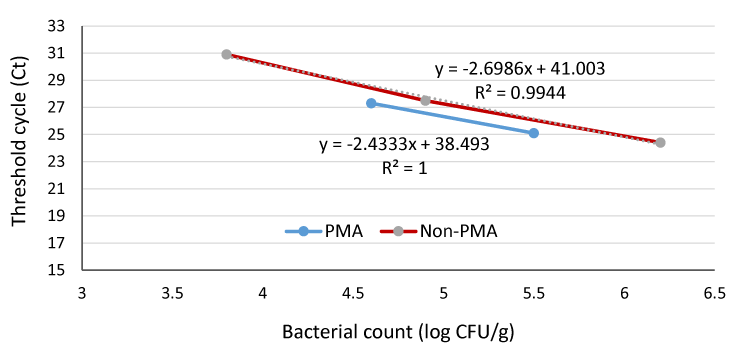

Figure 1: Quantification of VBNC and non-viable E. coli O157:H7 in spiked ground beef samples with PMA and non-PMA real-time PCR.

The differing results between the viable count detected by PMA real-time PCR and that from the non-PMA real-time PCR (Figure 2) indicated that E. coli O157:H7 cells after lactic acid treatment entered a VBNC state. The addition of an internal amplification control (IAC) in a real-time PCR reaction system allows one to monitor the efficiency of each reaction and prevent false-negative results [34-36]). pUC19 is a small, high copy number E. coli plasmid with a molecular weight of 2686 bp. It has been previously used with success as an IAC in real-time PCR [24]. Further, a negative control (water) was added to ensure that no DNA cross-contamination occurred in the PCR reaction. A real-time PCR assay is more sensitive than traditional PCR and can be quantitative for pathogenic bacterial detection in food.

The results confirm that lactic acid, widely used in food processing, can induce E. coli O157:H7 to enter the VBNC state. The nonculturable cells of E. coli O157:H7 failed to propagate even in TSBY and maintained intact membranes for 10 hat pH 3 which indicate that acid-stressed E. coli O157:H7 cells exhibited signs of metabolic activity. However, a minimum of approximately 10³ and 4 × 10⁴ CFU was required for the detection of VBNC E. coli O157:H7 using PMA real-time PCR in pure culture and spiked meat samples, respectively. A resuscitative step is needed during food examination when the initial concentration of pathogens is low. We are still in need for accurate analytical method for acidified foods and more researches on resuscitation and pathogenicity of acid-induced VBNC E. coli O157:H7.
