A comparison of blue and silver vertically-suspended environmental enrichment during Chinook Salmon and Rainbow trout rearing

This study evaluated the use of either blue or silver vertically-suspended environmental enrichment in two experiments, with one rearing Chinook salmon (Oncorhynchus tshawytscha) for 29 days and the other rearing rainbow trout (Oncorhynchus mykiss) for 98 days. In both experiments, there were no significant differences in total tank weight, gain, percent gain, feed conversion ratio, or percent mortality between tanks with either silver (unpainted aluminum) or blue vertically-suspended environmental enrichment. Individual fish total length, weight, specific growth rate, and condition factor were also not significantly different between the two colors for both fish species. These results indicate that either silver (unpainted aluminum) or blue vertically-suspended environmental enrichment can be used during the hatchery rearing of juvenile Chinook salmon or rainbow trout.

Introduction

Color can affect fish growth, physiology, aggression, and stress response [1-9]. Color preferences can vary between fish species and can change in the same fish over time [10]. For example, black had a positive impact on the growth of African catfish (Heterobrachus bidorsalis) but had no effect on river catfish (Pangasius hypophthalmus) [11,12]. Red light increases growth in rainbow trout (Oncorhynchus mykiss) but decreases growth in gilthead seabream (Sparus aurata) [13,14]. Blue light increases stress in rainbow trout but decreases it in Nile tilapia (Oreochromis niloticus) [1,13]. Color can interact with other components of the rearing environment to impact fish. For example, red-brown substrate had a positive impact on gilthead seabream physiology when compared to green or no substrate [15-17].

Substrate adds to the structural complexity of otherwise barren hatchery tanks. Substrate and other forms of environmental enrichment generally have positive effects during hatchery rearing [18-23]. Kientz and Barnes [22], first demonstrated that vertically-suspended environmental enrichment can positively improve growth while maintaining the hydraulic self-cleaning of the circular tanks. Most of the studies evaluating vertically-suspended environmental enrichment have used unpainted structures such as aluminum angles, aluminum rods, or grey polyvinyl chloride electrical conduit [22-27]. Kientz, et al. [28] and Crank, et al. [29], used strings of randomly colored spheres which dramatically improved weight gain and feed conversion ratio in rainbow trout compared to those in barren tanks.

Only three studies have evaluated the color of vertically-suspended environmental enrichment. Jones, et al. [30], reported improved fish rearing production for juvenile Chinook salmon (Oncorhynchus tshawytscha) using green vertically-suspended angles. In contrast, Chapman, et al. [31], found no effect of using blue vertically-suspended angles for juvenile rainbow trout. And Meza, et al. [32], found no difference in rainbow trout rearing performance using either silver, red, black, green, or blue environmental enrichment. The objective of this study was to evaluate the use of blue and silver (unpainted) aluminum vertically-suspended environmental enrichment during the hatchery rearing of juvenile Chinook salmon and rainbow trout.

Methods

Methods common to both experiments

This study was conducted at McNenny State Fish Hatchery, rural Spearfish, South Dakota, the USA using degassed and aerated 11 0C well-water (water hardness as CaCO3 = 360 mg/L, alkalinity a CaCO3 = 210 mg/L, pH = 7.6, total dissolved solids = 390 mg/L). Each of the two experiments used 10, indoor, circular tanks (diameter = 1.8 m, height = 0.8 m, water depth = 0.6 m). All tanks were nearly fully covered [33], with four aluminum angles (2.5 cm wide × 57.15 cm long) suspended through the covers as described by Krebs, et al. [23], (Figure 1). Feeding rates used the hatchery constant method [34], with an expected feed conversion ratio of 1.1 and a projected growth rate of 0.075 cm/day. All fish were fed every 20 minutes during daylight hours using automatic feeders and were fed at rates that are at, or slightly above, satiation. Dead fish were removed daily. Both studies started on 10 February 2021.

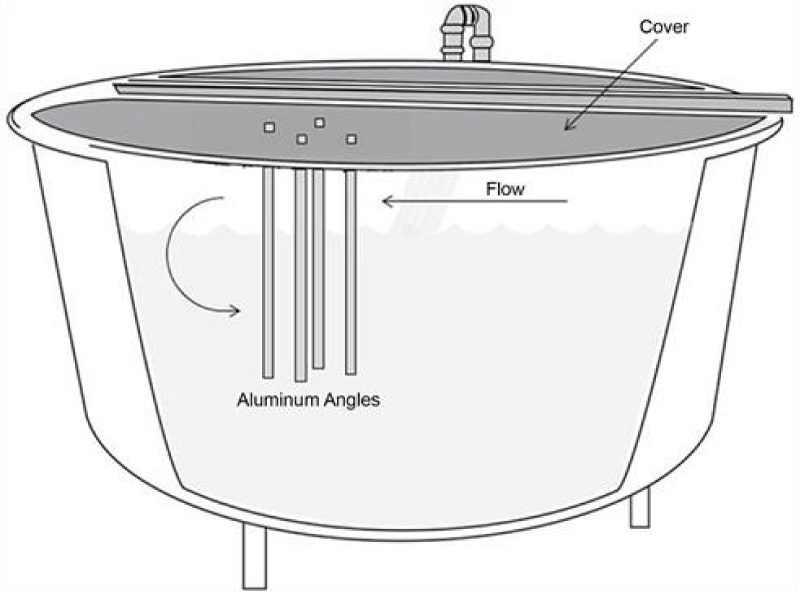

Figure 1: Circular tank with a suspended array of four aluminum angles, with the peak of the angle facing in the direction of the water flow.

There were two treatments in each experiment, with vertically-suspended environmental enrichment (aluminum angles) either silver (unpainted) or blue. The blue aluminum angles were painted with OSHA standard safety-blue paint (Krylon, Krylon products Group, Cleveland, Ohio, USA).

Experiment 1: Chinook salmon

Chinook salmon (mean ± SE; total length: 55 ± 1 mm, weight: 1.4 ± 0.1 g, n = 50) from a common pool were placed into 10 tanks. Five tanks had silver (unpainted) angles and five had blue angles (n = 5). Each tank contained approximately 9,000 fish (initial tank weight: 15.4 kg). Fish were fed a commercial diet (BioVita Starter, Bio-Oregon, Longview, Washington, USA). This experiment lasted 29 days, ending on 10 March 2021.

Experiment 2: Rainbow trout

Rainbow trout (mean ± SE; total length: 52 ± 1 mm, weight:1.5 ± 0.0 g, n = 50). from a common pool were placed into the 10 tanks. Five tanks had silver (unpainted) angles and five had blue angles (n = 5). Each tank contained approximately 3,200 fish (initial tank weight: 6.1 kg). Fish were fed a commercial diet (Protec, Skretting, Toole, Utah, USA). This experiment lasted 98 days, ending on 19 May 2021.

Statistical analysis

At the end of the experiment, total lengths to the nearest mm and weights to the nearest 0.1 g were recorded for ten fish from each tank. Condition factor (K) and specific growth rates (SGR) were calculated using the following formulas:

$K ={10}^5\times \frac{fish weight}{fish lengt{h}^3}$

$SGR=100\times \frac{\ln (end weight)-\ln (start weight)}{number of days}$

Total tank weight was obtained by weighing all the fish in a tank. Gain, percent gain, feed conversion ratio (FCR), and percent mortality were calculated using the following formulas:

$Gain=end weight-start weight$

$Gain (\%)=100\times \frac{gain}{start weight}$

$Mortality (\%)=100\times \frac{number of dead fish }{initial number offish}$

The SPSS (24.0, IBM, Armonk, New York, USA) statistical program was used for data analysis. One-way analysis of variance was performed with significance pre-determined at p < 0.05.

Results

Experiment 1: Chinook Salmon

Final mean tank weight, gain, percent gain, feed conversion ratio, and percent mortality was not significantly different between the tanks of salmon reared with either silver or blue vertically-suspended environmental enrichment (Table 1; p - value: 0.321, 0.321, 0.321, 0.320, and 0.383, respectively). For example, the final mean (± SE) percent gain was 132 (± 15) for fish reared in the tank with silver (unpainted) aluminum angles and 149 (± 5) for fish reared with blue aluminum angles. Final individual mean fish total length, weight, condition factor, and specific growth rate were also not significantly different between salmon reared with either silver or blue vertically-suspended environmental enrichment (Table 2; p - value: 1.000, 0.572, 0.136, and 0.075, respectively). For example, the final individual mean (± SE) weight was 3.7 (± 0.2) g for the fish reared with silver angles compared to 3.9 (± 0.2) g for fish reared with blue angles.

Experiment 2: Rainbow Trout

Final mean tank weight, gain, percent gain, feed conversion ratio, and percent mortality was not significantly different between the tanks of rainbow trout reared with either silver or blue vertically-suspended environmental enrichment (Table 1; p - value: 0.258, 0.258, 0.258, 0.265, and 0.130, respectively). For example, the final mean (± SE) feed conversion ratio was 0.8 (± 0.00) for fish reared in the tank with silver (unpainted) aluminum angles and 0.8 (± 0.00) for fish reared with blue aluminum angles. Final individual fish total length, weight, condition factor, and specific growth rate were also not significantly different between salmon reared with either silver or blue vertically-suspended environmental enrichment (Table 2; p - value: 0.279, 0.296, 0.332, and 0.924, respectively). For example, the final individual mean (± SE) specific growth rate was 3.0 (± 0.1) for the fish reared with silver angles compared to 2.9 (± 0.1) g for fish reared with blue angles.

Discussion

The results of the experiment using Chinook salmon add to the observations of Jones, et al. [30] who noted an improvement in salmon growth using green vertically-suspended environmental enrichment in comparison to silver, red, and black structures. The present study found no effects with blue vertically-suspended environmental enrichment. It was hypothesized that blue would be beneficial, given the predominance of blue visual pigment cones in juvenile Chinook salmon eyes [35]. This obviously did not occur within the relatively short 29-day duration of this study.

The results of this study, whereby rainbow trout growth was unaffected by either of the two colors of vertically-suspended environmental enrichment, are similar to those reported by Chapman, et al. [31] and Meza, et al. [32] who also examined rainbow trout. The Chapman, et al. [31], study was relatively short and found no difference in rainbow trout growth using red, green, and blue vertically-suspended environmental enrichment. Meza, et al. [32] used rainbow trout with initial lengths of 78 mm and observed no difference in growth after 86 days of rearing with either silver, red, black, green, or blue vertically-suspended environmental enrichment. The rainbow trout used in this study was much shorter at 52 mm, was reared for a longer duration of 98 days, and produced similar results comparing just two colors, silver, and blue.

The impact of color during rainbow trout rearing is uncertain. Luchiari and Pirhonen [36], observed that green environments increased trout growth compared to blue, red, white, or yellow environments. In contrast, Karakatsouli, et al. [14] reported that red light increased rainbow trout growth, and Üstündağ and Rad [37], observed better growth in beige tanks relative to green or gray tanks. Lastly, black tanks reduced rainbow trout growth [38]. Thus, while rainbow trout are likely influenced by color in the rearing environment, such influences may be impacted by the amount of color, light intensity, duration of exposure, life stage, genetics, or temperature [10,36,39].

The results of this study may have been impacted by the relatively small colored surface area of the vertically-suspended aluminum angles. In comparison to the color of the entire tank, the small amount of color in the suspended structure may not be enough to have any effect on fish growth [31,32]. Other potential factors influencing the results include tank covers [33], the 11°C water temperature [36], and the size of the fish [38]. Genetics also likely plays a part in color preferences as indicated by the differences among salmonid species [7,13,14,30-32,36-38].

In conclusion, the results of this study indicate that either silver (unpainted aluminum) or blue vertically-suspended environmental enrichment are acceptable for use during the hatchery rearing of juvenile Chinook salmon and rainbow trout. Additional research is needed on different colors and different life stages.

1. Volpato GL, Barreto RE. Environmental blue light prevents stress in the fish Nile tilapia. Braz J Med Biol Res. 2001 Aug;34(8):1041-5. doi: 10.1590/s0100-879x2001000800011. PMID: 11471044.
2. Strand Å, Alanärä A, Staffan F, Magnhagen C. Effects of tank colour and light intensity on feed intake, growth rate and energy expenditure of juvenile Eurasian perch, (Perca fluviatilis L.). Aquac. 2007; 272: 312-318. Link:  https://doi.org/10.1016/j.aquaculture.2007.08.052
3. Doolan BJ, Allan GL, Booth MA, Jones PL. Cage colour and post-harcets K+ concentration affect skin colour of Australian snapper Pargus auratus (Block & Schneider, 1801). Aquac Res. 2008; 39: 919-927. Link:  https://doi.org/10.1111/j.1365-2109.2008.01950.x
4. Lin Q, Lin J, Huang L. Effects of substrate color, light intensity and temperature on survival and skin color change of juvenile seahorses, Hippocampus erectus Perry, 1810. Aquac. 2009; 298: 157-161. Link: https://doi.org/10.1016/j.aquaculture.2009.10.015
5. Qin G, Lin Q, Gu N, Lin J, Huang L. Effect of broodstock origin, background, and substrate color on skin coloration of three-spotted seahorses (Hippocampus trimaculatus Leach, 1814). J Exp Marine Biol and Ecol. 2012; 416: 129-134. Link: https://doi.org/10.1016/j.jembe.2012.02.007
6. Eslamloo K, Akhavan SR, Eslamifar A, Henry MA. Effects of background colour on growth performance, skin pigmentation, physiological condition, and innate immune responses of Goldfish, (Carassius auratus). Aquac Res. 2015; 46: 202-215. Link: https://doi.org/10.1111/are.12177
7. Gaffney LP, Franks B, Weary DM, von Keyserlingk MA. Coho Salmon (Oncorhynchus kisutch) Prefer and Are Less Aggressive in Darker Environments. PLoS One. 2016 Mar 30;11(3):e0151325. doi: 10.1371/journal.pone.0151325. PMID: 27028731; PMCID: PMC4814047.
8. Ghavidel S, Kochanian P, Salati AP. The effects of tank color on growth performance and physiological responses in fingerling grouper, Epinephelus coioides. Aquac Res. 2019; 51: 276-281. Link: https://doi.org/10.1111/are.14373
9. Morshedi V, Perumal Pradhoshini K, Tangestani N, Ghasemi A, Sotoudeh E, Gamoon R, Saiyad Mustahafa M. Effects of rearing tank color on growth indices, blood chemistry, digestive enzymes, expression of stress and growth-related genes of Asian sea bass juvenile (Lates caclarifer). Aquac Res. 2022; 10: 3780-3787. Link: https://doi.org/10.1111/are.15884
10. Ullmann JFP, Gallagher T, Hart NS, Barnes AC, Smullen RP, Collin SP, Temple SE. Tank color increases growth, and alters color preference and spectral sensitivity, in barramundi (Lates calcarifer). Aquac. 2011; 322-323:235-240. Link: https://doi.org/10.1016/j.aquaculture.2011.10.005
11. Solomon JR, Ezigbo MN. Effects of background tank colour on the growth and survival of juvenile (Heterobrachus bidorsalis) fed with coppens commercial floating pellets and (Cyperus esculentus) meal. Direct Res J Public Health and Env Technol. 2018; 3: 17-33. Link: ­­­https://doi.org/10.4314/tfb.v27i1.6
12. Mat Nawang SUS, Ching FF, Senoo S. Comparison on growth performance, body coloration changes and stress response of juvenile river catfish, (Pangasius hypophthalmus) reared in different tank background colour. Aquac Res. 2019; 50: 2591-2599. Link: https://doi.org/10.1111/are.14215
13. Karakatsouli N, Papoutsoglou SE, Pizzonia G, Tsatsos G, Tsopelakos A, Chadio S, Kalogiannis D, Dalla C, Polissidis A, Papadopooulou-Daifoti Z. Effects of light spectrum on growth and physiological status of gilthead seabream (Sparus aurata) and rainbow trout (Onchorhynchus mykiss) reared under recirculating system conditions. Aquac Eng. 2007; 36: 302-309. Link: https://doi.org/10.1016/j.aquaeng.2007.01.005
14. Karakatsouli N, Papoutsoglou SE, Panopoulos G, Papoutsoglou ES, Chadio S, Kalogiannis D. Effects of light spectrum on growth and stress response of rainbow trout (Onchorhynchus mykiss) reared under recirculating system conditions. Aquac Eng. 2008; 38: 36-42. Link: https://doi.org/10.1016/j.aquaeng.2007.10.006
15. Batzina A, Karakatsouli N. The presence of substrate as a means of environmental enrichment in intensively reared gilthead sea bream (Sparus aurata): growth and behavioral effects. Aquac. 2012; 370-371: 54-60. Link: https://doi.org/10.1016/j.aquaculture.2012.10.005
16. Batzina A, Karakatsouli N. The preference of 0+ and 2+ gilthead seabream (Sparus aurata) for coloured substrates or no-substrate. Appl Anim Behav Sci. 2014; 151: 110-116. Link: https://doi.org/10.1016/j.applanim.2013.11.013 22
17. Batzina A, Karakatsouli N. Is it the blue gravel substrate or only its blue color that improves growth and reduces aggressive behavior of gilthead seabream (Sparus aurata)?. Aquac Eng. 2014; 62: 49-53. Link: https://doi.org/10.1016/j.aquaeng.2014.06.004
18. Bosakowski T, Wagner EJ. Experimental use of cobble substrates in concrete raceways for improving fin condition of cutthroat (Oncorhynchus clarkii) and rainbow trout (Oncorhynchus mykiss). Aquac. 1995; 130(2-3):159-165. Link: https://doi.org/10.1016/0044-8486(94)00223-B
19. Arndt RE, Routledge MD, Wagner EJ, Mellenthin RF. Influence of raceway substrate and design on fin erosion and hatchery performance of rainbow trout. N Am J Aquac. 2001; 63: 312-320. Link: https://doi.org/10.1577/1548-8454(2001)063<0312:IORSAD>2.0.CO;2
20. Berejikian BA, Tezak EP, Flagg TA, LaRae AL, Kummerow E, Mahnken CVW. Social dominance, growth, and habitat use of age-0 steelhead Oncorhynchus mykiss grown in enriched and conventional hatchery rearing environments. Can J Fish and Aquat Sci. 2000; 57: 628-636. Link: https://doi.org/10.1139/f99-288
21. Näslund J, Rosengren M, Del Villar D, Gansel L, Norrgård JR, Persson L, Winkowski JJ, Kvingedal E. Hatchery tank enrichment affects cortisol levels and shelter-seeking in Atlantic salmon (Salmo salar). Can J Fish and Aquat Sci. 2013; 70(4): 585-590. Link: https://doi.org/10.1139/cjfas-2012-0302
22. Kientz J, Barnes ME. Structural complexity improves the rearing performance of rainbow trout in circular tanks. N Am J Aquac. 2016; 78: 203-207. Link: https://doi.org/10.1080/15222055.2016.1159629
23. Krebs E, Huysman N, Voorhees JM, Barnes ME. Suspended arrays improve rainbow trout growth during hatchery rearing in circular tanks. Int J Aquac and Fish Sci. 2018; 4: 27-30. Link: http://doi.org/10.17352/2455-8400.000040
24. White SC, Krebs E, Huysman N, Voorhees JM, Barnes ME. Addition of vertical enrichment structures does not improve growth of three salmonid species during hatchery rearing. J Marine Biol and Aquac. 2018; 4: 48-52. Link: ­­­https://doi.org/10.15436/2381-0750.18.1957
25. White SC, Krebs E, Huysman N, Voorhees JM, Barnes ME. Use of suspended plastic conduit arrays during brown trout and rainbow trout rearing in circular tanks. N Am J Aquac. 2019; 81: 101-106. Link: ­­­­https://doi.org/10.1002/naaq.10076
26. Jones MD, Krebs E, Huysman N, Voorhees JM, Barnes ME. Rearing performance of Atlantic salmon grown in circular tanks with vertically-suspended environmental enrichment. Open J Anim Sci. 2019; 9: 249-257. Link: https://doi.org/10.4236/ojas.2019.92021
27. Rosburg AJ, Fletcher BL, Barnes ME, Treft C, Bursell BR. Vertically- suspended environmental enrichment structures improve the growth of juvenile landlocked fall Chinook salmon. Int J Innovative Studies in Aquat Biol and Fish. 2019; 5(1): 17-24. Link: https://dx.doi.org/10.20431/2454 -7670.0501004
28. Kientz J, Crank KM, Barnes ME. Enrichment of circular tanks with vertically suspended strings of colored balls improves rainbow trout rearing performance. N Am J Aquac. 2018; 80:162-167. Link: ­­­­https://doi.org/10.1002/naaq.10017
29. Crank KM, Kientz JL, Barnes ME. An evaluation of vertically-suspended environmental enrichment during rainbow trout rearing. N Am J Aquac. 2019; 81: 94 -10. Link: https://doi.org/10.1002/naaq.10064
30. Jones MD, Voorhees JM, Huysman N, Krebs E, Barnes ME. Use of different colours of vertically-suspended structure during the hatchery rearing of juvenile landlocked fall Chinook salmon (Oncorhynchus tshawytscha, Walbaum). Int J Fish and Aquac. 2020; 12(2): 21-25. Link: https://doi.org/10.5897/IJFA2019.0762
31. Chapman A, Huysmand N, Voorhees JM, Krebs E, Barnes ME. Color of vertically-suspended environmental enrichment does not effect juvenile rainbow trout growth during hatchery rearing. Int J of Fish and Aquat Stud. 2020; 8(3): 32-36.
32. Meza E, Jones MD, Huysman N, Voorhees JM, Barnes ME. Color of vertically-suspended structure does not impact the growth of rainbow trout reared in circular tanks. Open J Anim Sci. 2020; 10: 706-713. Link: https://doi.org/10.4236/ojas.2020.104045
33. Walker LM, Parker TM, Barnes ME. Full and partial overhead tank cover improves rainbow trout rearing performance. N Am J Aquac. 2016; 78: 20-24. Link: https://doi.org/10.1080/15222055.2015.1090504
34. Buterbaugh GL, Willoughby H. A feeding guide for brook, brown, and rainbow trout. The Progr Fish-Cult. 1967; 29: 210-215. Link: https://doi.org/10.1577/1548-8640(1967)29[210:AFGFBB]2.0.CO;2
35. Flamarique IN. Temporal shifts in visual pigment absorbance in the retina of Pacific salmon. J Comp Phys Part A. 2005; 191: 37-49 Link: https://doi.org/10.1007/s00359-004-0573-9
36. Luchiari AC, Pirhonen J. Effects of ambient colour on colour preference and growth of juvenile rainbow trout (Oncorhynchus mykiss, Walbaum). J Fish Biol. 2008; 72:1504-1514. Link: https://doi.org/10.1111/j.1095-8649.2008.01824.x
37. Üstümdağ M, Rad F. Effect of different tank colors on growth performance of rainbow trout juvenile (Oncorhynchus mykiss, Walbaum, 1792). J Agric Sci. 2015; 21: 144-150. Link: https://doi.org/10.15832/tbd.15181
38. Papoutsoglou SE, Karakatsouli N, Chiras G. Dietary L-tryptophan and tank color effects on growth performance of rainbow trout (Oncorhynchus mykiss) juveniles reared in a recirculating water system. Aquac Eng. 2005; 32: 277-284. Link: https://doi.org/10.1016/j.aquaeng.2004.04.004
39. Beauty DD. A study in the succession of visual pigments in Pacific salmon (Oncorhynchus). Can J Zool. 1966; 44: 429-455. Link: https://doi.org/10.1139/z66-045
