Evaluation of agrobiodiversity and its trophic interactions as an indicator of sustainability in productive systems

Agriculture has intervened, modified, and simplified ecosystems to obtain some goods and services. Conventional o industrial agriculture emphasizes the use of external inputs and the homogeneity of the landscape; agroecology promotes biodiversity to maximize biological interactions and their ecosystem services. The objective was to evaluate agrobiodiversity and its trophic interactions as an indicator of sustainability by comparing: industrial productive systems, and agro-ecological and semi-natural sites in the southern Pampas region. Samples were taken of mammals, birds, arthropods, and vegetation; with different indices, the food chains and the state of the system were evaluated. The results show that agricultural intensification simplifies landscape structure with a loss of biodiversity and the absence of functional groups (herbivores and nectarivorous). In agroecological wheat, the highest density of links was found and in agroecological pastures the highest grouping coefficient, this reveals greater cohesion and integration among the components of the system and more mechanisms of self-regulation. The agroecological diversity Index showed no differences between the management, this could be related to the presence of a biological corridor in the conventional field that would be increasing biodiversity. The key to achieving sustainable agroecosystems is to procure biodiverse landscapes with patches and corridors of shrub and herbaceous species.

Introduction

The role of biodiversity in agroecosystems has been revalued in recent years due to the ecological services it provides such as nutrient cycling, biotic regulation, pest control, pollination, etc. These ecosystem services derive from the ecological processes of ecosystems and are closely related to biodiversity [1,2]. Ecological interactions are fundamental in ecological pest management, and these interactions form networks. The properties of these networks, where interactions of all possible nature (positive, neutral, negative) coexist, are keys for management [3]. Regardless of the agricultural productive approach agriculture always implies a certain simplification of the ecosystem by reducing its original biodiversity. However, with the current agricultural productive approach, intentional integration of beneficial biodiversity in industrialized agricultural systems can be seen as an impediment to production efficiency in competing for land and resources [4]. Conventional agriculture emphasizes the use of external inputs instead of ecosystem services, as well as genetic and specific uniformity at the level of the lot and even of establishment; which translates into the homogeneity of the landscape [5]. On the other hand, agriculture under an agroecological approach emphasizes the maintenance of adequate biodiversity to maximize biological interactions, synergies, the biomass cycle, and nutrients, to ensure the sustainability of the quality of vital natural resources such as soil and water [6]. In the agroecological literature, it is proposed that increasing agricultural biodiversity involves an increase in the number of trophic interactions of the ecological community, which in turn promotes the stability of the whole system [7,8]. Although each species contributes to the functioning of ecosystems, the nature and magnitude of their contributions vary considerably depending on the ecosystem or the process to which reference is made. Therefore, the total set of functional characters, as well as their abundance, in a community is one of the main determinants of ecosystem functioning [9,10].

The Pampas Ecoregion is the most important ecosystem of grasslands in Argentina totaling about 540,000km2 and the most transformed by agricultural production. In this region, there was a homogenization of the landscape and a decrease in the biodiversity of wild species typical of the Pampean grassland [11]. Argentine Pampas´ process of agriculturalization over marginal areas and livestock fields continues to transform the region and is especially important in those subregions that until a few years ago appeared as less affected by this process, such as the Depressed Pampa and the Southern Pampa. Currently, these environments are in many cases in a compromised situation in terms of their conservation status and ability to provide ecosystem services. For this reason, the studies proposed in this project were addressed in the Southern Pampa subregion. In this context, we aimed to determine and evaluate agrobiodiversity and its trophic interactions as an indicator of sustainability under different agricultural productive approaches, as well as in semi-natural sites in the southern Pampas. Therefore, it is hypothesized that the agroecological agricultural approach supports greater agrobiodiversity than industrial agricultural systems.

Materials and methods

Study area

The research was conducted at Tres Arroyos Country (38°47′S, 60°06′W), a representative wheat production region in the southern Pampas Ecoregion, Argentina. Three study sites were selected. Two of them were fields, one under agroecological productive approach for six years (“Argelanda” S 38º 19.453´, W 60º 15.284´; 320 ha; Figure 1), and the other under industrial productive approach (“INTA-MDA”, S 38º 48.456´, W 60º 06.014´; 311 ha and 70 ha of the forest; Figure 1). Both had a wheat plot and a pasture plot within-field (Agroecological wheat= AEW of 5 ha plot, Industrial wheat= IndW 10 ha plot, Agroecological pasture= AEP of 5 ha plot, Industrial pasture= IndP of 5 ha plot). The third study site was a semi-natural area called “La Isla” (SNat) without management, with the presence of grassy, shrubby, and woody vegetation, both native and exotic (S 38º 50.793´, W 60º 05.241´; 5 ha plot; Figure 1).

Figure 1: Map with the study areas. 1-Argelanda (S 38º 19.453´, W 60º 15.284´), 2- INTA-MDA (S 38º 48.456´, W 60º 06.014´); and 3- La Isla (S 38º 50.793´, W 60º 05.241´).

Fields were managed commercially and were selected because they are considered typical for the area in terms of their productive approach. Different samples were carried out during the spring of 2017 and 2018. The sampling area was the same at each site, it was 2.5 ha and this was chosen at random within each plot.

Mammals sampling

A sampling of micro-mammals in 2 transects with 25 trapping stations in each one, 20 m apart. Each trapping session lasted 3 consecutive nights at each site. The capture-mark-recapture method was used with Sherman and Tomahawk traps. Each animal was taken by standard morphometric measurements, weight, age, and sex. These measurements were taken for later population work. In this research, we were only interested in determining the species.

The signs of fauna were recorded in 2 transects of 200×10m per site [12]. The animals were determined seen or heard, and the signs of fauna such as feces, footprints, or caves [12-17]. Then, the recorded species were divided into different trophic guilds, such as herbivorous, granivores, insectivorous, omnivore, carnivorous, and nectarivorous using bibliography [18] (Appendix 1).

Bird sampling

We made counts for finite radius points, at each point, the radius was 50 m and we observed for 10 minutes making the determinations and counting the birds seen in that circle. There were three counting points per site. We used 10x50 binoculars (Bushnell) and a ground telescope (Bushnell). Each point was georeferenced. For the taxonomy and systematics of birds, we consulted Narosky and Yzurieta [19] and Fangauf and Winkler [20]. Then, the recorded species were divided into different trophic guilds, such as herbivorous, granivores, insectivorous, omnivore, carnivorous, and nectarivorous using bibliography [19,20] (Appendix 1).

Arthropod sampling

Pitfall traps were used for sampling ground-dwelling arthropods. At the sites Agroecological and Industrial, a total of 8 pitfall traps (plastic jar, diameter = 11cm, height= 10cm) with a 1000ml capacity, filled with 300 ml of a 5% formalin solution [21] and detergent (~1mL). At each study site, 4 equidistant traps were placed 10m from each other. Traps remained in the field for seven consecutive days [22]. The samples collected were transported to the laboratory, filtered and cleaned of debris and inorganic material, and examined by stereomicroscope.

Quantifiable morphological characteristics were followed for arthropod taxonomy identification. Formicidae and Collembola were not quantified, only the presence/absence record was taken due to their abundance.

Four sweep net samples were taken in Agroecological and Industrial sites and La Isla, each consisting of 10 sweeps with a 33.2 cm diameter net. Each sweep was 1.5m pass through the groundcover foliage [23]. The sweep samples were deposited in plastic bags, transported to the laboratory, and then frozen at -20°C to kill all arthropods. Sorting, taxonomy identification, and counts of abundance took place in the laboratory.

The taxonomic groups that could not be identified in the laboratory of the Chacra Experimental Integrada Barrow (INTA-MAIBA, for example, Diptera) were sent to the Entomology Laboratory of the IADIZA-CCT Mendoza, CONICET, to be determined. Then, the recorded species were divided into different trophic guilds, such as herbivorous, granivores, insectivorous, omnivore, carnivorous, and nectarivorous using bibliography [24-28] (Appendix 1).

The results of arthropods were only used for the analysis of the Trophic graph, establishing their interrelations.

Vegetation sampling

Before vegetation sampling, a field reconnaissance visit of the study area enabled the distribution of the main vegetation units to be identified from field observation. A total of 6 quadrats were sampled at each study site. The size of each quadrat was 1 m x 1 m, determined using the minimal area concept. The quadrats were placed within homogeneous vegetation sites, following the Zürich-Montpellier School of Phytosociology method [29]. The presence and abundance (cover) of species per plot (census) were estimated in percentage terms [30-33]. The position of the quadrats was determined using a Global Positioning System.

Species identification was made following Cabrera y Zardini [34], Dimitri [35], Lamberto, et al. [36], Zuloaga, et al. [37] y Villamil y Martínez [38] (Appendix 1).

The results of vegetation were only used for the analysis of the Trophic graph, establishing their interrelations.

Indexe

Specific richness was calculated as the number of species of mammals and birds per group, of the different functional groups (herbivorous, granivores, insectivorous, omnivore, carnivorous, nectarivorous) at the sites studied [39]. The Standardized Shannon index was obtained to measure the diversity of species, considering their uniformity, this index being standardized allows comparison between different systems. This index is normally represented as H´St. Jaccard´s Index [40] was calculated to determine the similarity between study sites (very high 80-100%, high 60-79.9%, average 40-59.9%, low 20-39.9%, and very low 0-19.9%).

Analysis of variance (ANOVA) was used to compare the abundance and specific richness (R) of the different functional groups (herbivorous, granivores, insectivorous, omnivore, carnivorous, nectarivorous) among the sites studied. Post-hoc testing (Tukey test, P<0.05 and α=0.05) was used to test for differences among considered variables.

The Agroecological Diversity Index (I Agro) proposed by Griffon [41] was also calculated. This index allows the evaluation of the system as a whole because, in addition to measuring the richness and abundance of the elements of the system, it also takes into account its interactions. The Agro I index allows for to evaluation of the attributes of agrobiodiversity, impossible to study through the use of classical ecological indices [41]. It is also consistent with the theoretical framework of agroecology and the index structure is extremely simple and its calculation is done using the R software [42] for the analysis of networks and data in Pajek format.

Initially, each study site, considered a complete system, was represented in a graph, establishing the components of agrobiodiversity and their interrelations, that is, each species of registered bird and mammal was represented as an element of the system. Trophic groups of arthropods and vegetation strata were represented as nodes, and the nodes were related according to the main diet of each bird or mammal [43]. The nodes represent populations of species and links are the direct trophic interactions [43].

The three measures necessary to obtain the I Agro of each study site were calculated: the standardized Shannon index (HST) [40]; the density of the links (D) determined as the number of links observed in the graph thus incorporating the number of interactions in the system [44]; and the clustering coefficient (C) that relates the presence of short loops within the graph [44] that allows inferring the redundancy of the system and its functional structure. These measurements were calculated with the statistical software R [42]

Then:

I Agro = H´St + D + C

Since all components of the index are standardized (their maximum value is 1), the maximum value of the Agro I index is 3 [41,43].

Results

The greatest species richness and the diversity of species (H´St) were found in SNat. The density of individuals per hectare was higher in SNat and also in agroecological pastures (AEP). According to the Jaccard index, the similarity is very low between sites, only 15% (Table 1).

Only in SNat were recorded the six functional groups (including mammals and birds), while in industrial pastures (IndP) and agroecological pastures (AEP) was registered five of the six functional groups, lacked only the nectarivorous. In the wheat fields with industrial management (IndW) and agroecological (AEW), functional groups of herbivores and nectarivorous lacked (Figures 2,3).

Herbivores were more abundant in AEP, due to a higher number of European hares. The granivores were more abundant in SNAT, corresponding only to the birds. In IndW, 50% of the granivores corresponded to birds, and the other 50% to the rodent Calomys laucha. In AEP, the granivores were represented only by birds. Insectivores were more abundant in AEP and AEW, decreasing in IndP, being all birds in this functional group. These results could be due to the non-use of pesticides in agroecological fields. The omnivores were more abundant in EAP, IndP, and AEW, the records correspond mostly traces of armadillos (Cingulata Order). The largest number of carnivores was recorded of SNat (F= 6.24; p= 0.0005, gl= 6) (Figure 2).

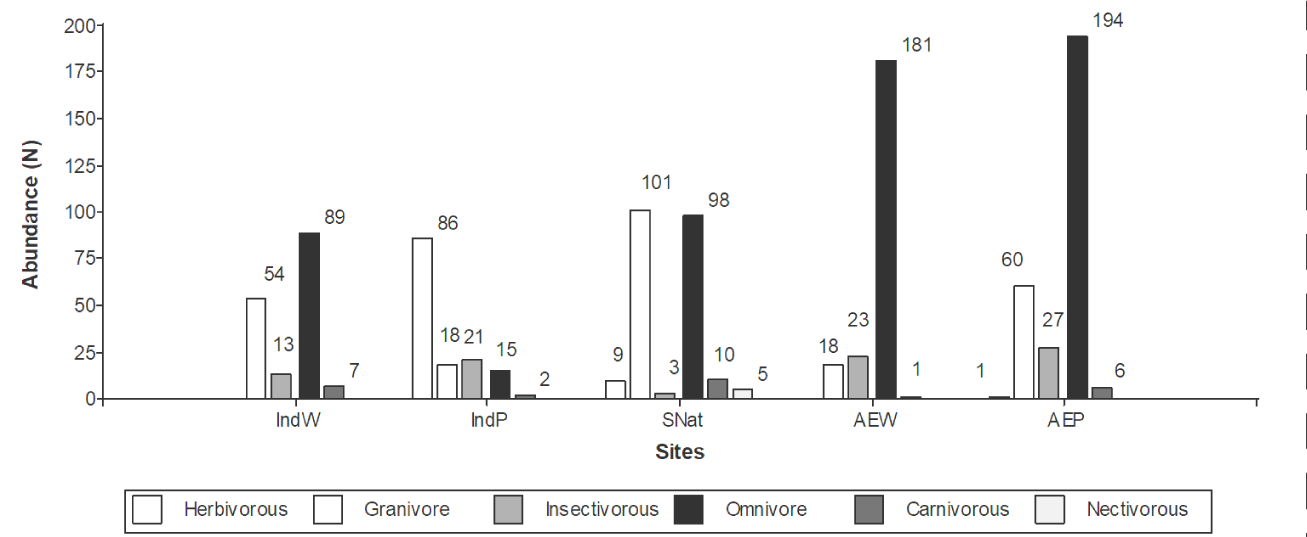

Figure 2: Abundance (total number of individuals per group includes mammals and birds) of the different functional groups (herbivorous, granivores, insectivorous, omnivore, carnivorous, nestivorous) at the sites studied. IndW (Industrial wheat); IndP (Industrial pasture); AEW (Agroecological wheat); AEP (Agroecological pasture); SNat (semi-natural area).

Likewise, the greater species richness in the functional groups of herbivores, granivores, and omnivores was observed in SNat (mammals and birds included). (F= 13.29; p <0.0001, gl= 6) (Figure 3).

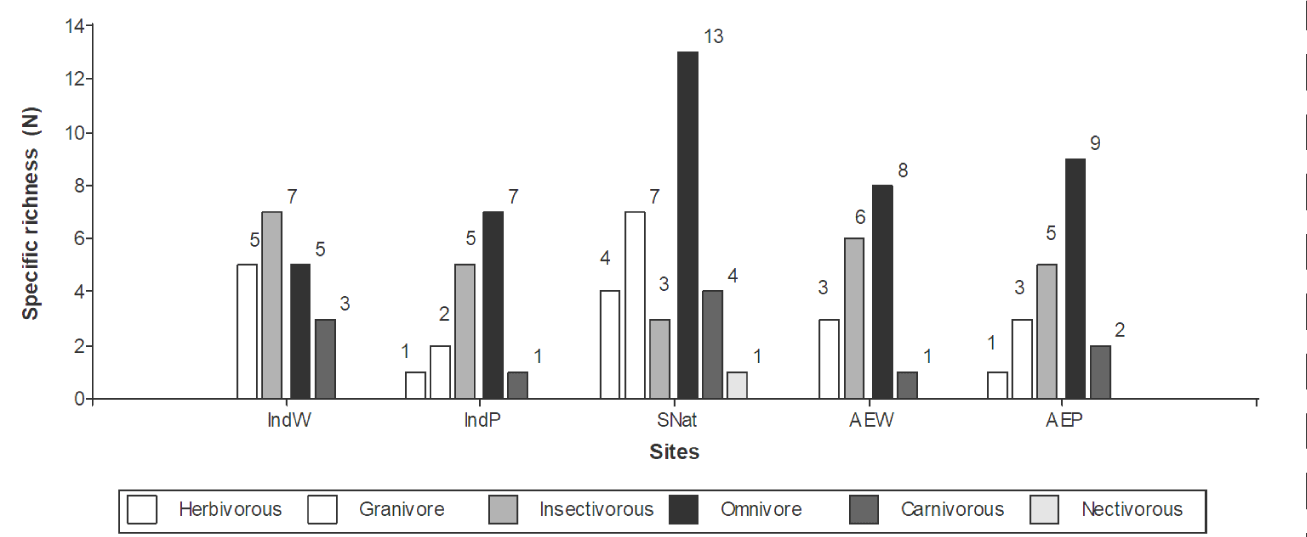

Figure 3: Specific richness (number of species of mammals and birds per group) of the different functional groups (herbivorous, granivores, insectivorous, omnivore, carnivorous, nestivorous) at the sites studied. IndW (Industrial wheat); IndP (Industrial pasture); AEW (Agroecological wheat); AEP (Agroecological pasture); SNat (semi-natural area).

In the graphics, we can see that the highest link density was registered in AEW, with 23 nodes; among mammals, birds, types of vegetation, and groups of arthropods. Also, the clustering coefficient was higher in AEW, where occurred 41% of the possible triangles are given. This percentage provides information on the functional structure of the system. In addition, the highest I Agro also occurred in AEW followed by SNat (Table 1, Figure 4).

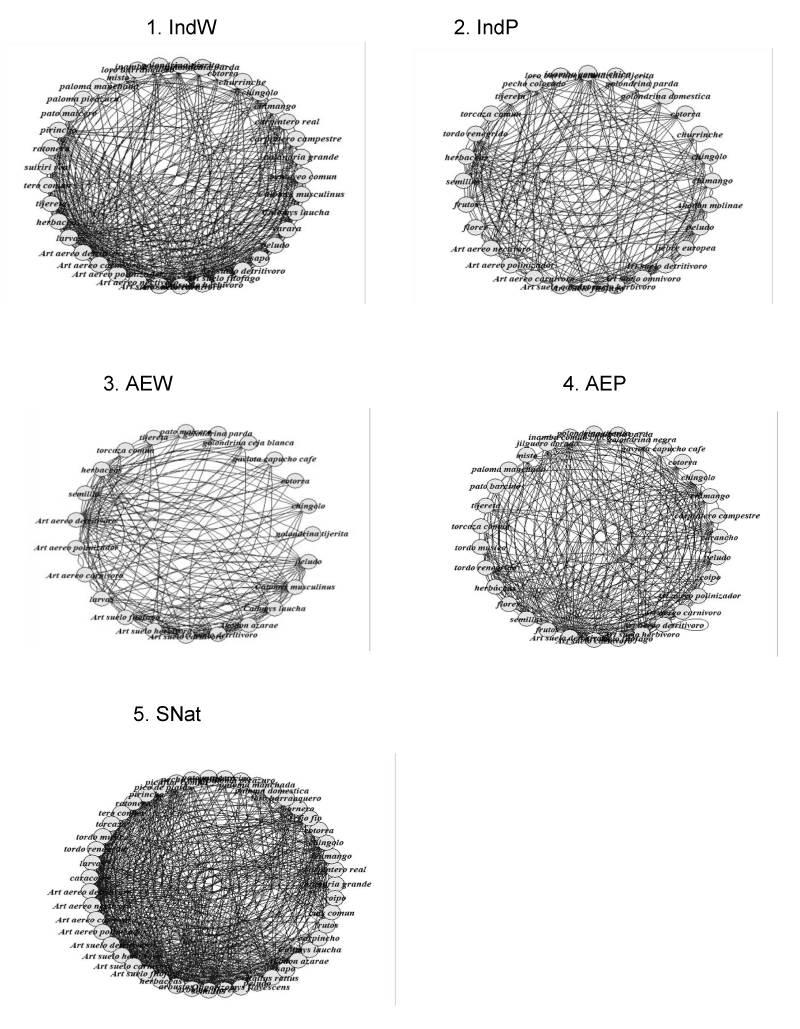

Figure 4: R Graph´s represents the ecological networks of each study site. The nodes represent populations of species and links are the direct trophic interactions. 1. IndW (Industrial wheat); 2. IndP (Industrial pasture); 3. AEW (Agroecological wheat); 4. AEP (Agroecological pasture); 5. SNat (semi-natural area).

Discussion and conclusions

The results show that agricultural intensification produces a loss of biodiversity detected through the richness, density, and Shannon standardized index; and the absence of herbivores (birds and mammals) and nectarivores (birds). Within the agricultural establishments, agriculture generated a simplification of the plant communities within the productive lots by moving from polyculture to monoculture, as well as by intensifying the control of weeds and arthropods of pests through the increasingly intensive use of agrochemicals [45-47]. This abusive use of pesticides generated the resistance of a part of pests and weeds, thus generating an even greater increase in the use of agrochemicals for their control [48,19], for example, controllers of insects and insectivores birds and mammals. In this way, the systems became increasingly vulnerable, because natural enemies are eliminated and pests appear that are increasingly difficult to control with the current practices [50,51]. In a conventional monoculture, the system is explicitly designed and managed to reduce as much as possible the unplanned associated biodiversity (typically by using insecticides, herbicides, etc.). Paradoxically this may contribute (among other things) to the long-term establishment of phytophagous organisms in the system, eradicating at the same time their biological controllers (Jonsson et al. 2015; Landis, Wratten, and Gurr 2000; Levins and Vandermeer 1990). In this type of farming system, most species are related directly to one (the monoculture) by a victim-exploiter relationship (i.e., predation, parasitism, parasitoids, and herbivory), where the monoculture species (the crop) typically plays the role of the victim. So, the system has a star-like architecture (i.e., many nodes connected to a central hub) with the monoculture in the center (Griffon and Torres-Alruiz 2008), which is a structure that favors the occurrence of pest situations and crops losses [43].

As shown by the high indexes of link density and the coefficient of grouping between species (mammals, birds, type of vegetation, and arthropod groups), agricultural production under the agroecological approach. This would indicate that the agroecological system generates a greater degree of cohesion and integration between the components of the system in relation to the other situations studied. These values ​​are associated with systems that self-regulate and have closed trophic cycles. Diversity plays a significant role in maintaining the resilience of ecosystems [52], giving it the ability to adapt to disturbances, reorganize and sustain itself over time [53]. There are different trophic groups and a large number of species within them [51,54]. For example, pollinators fulfill a specific function and can be represented by bees, bats, and birds, among others [55]. Therefore, the characteristics such as the abundance in a community are one of the main determinants of ecosystem functioning [9,10].

The highest index of agroecological diversity was presented in the agroecological wheat field followed by the seminatural site. demonstrating that the key to achieving sustainable but at the same time productive agroecosystems is the application of the agro-ecological productive approach, through which biodiversity landscapes are obtained, including productive diversity (crops and animals), as well as auxiliary and functional biodiversity [56]. This demonstrates that the key to achieving sustainable but at the same time productive agroecosystems is the application of the agro-ecological productive approach, through with biodiversity landscapes are obtained, including productive diversity (crops and animals), as well as auxiliary and functional biodiversity, such as agroforestry systems (SAF) by creating patches and corridors [56]. Incorporating woody or shrubby species into the results of the system in numerous ES, especially in those ecosystems where the tree or species are part of the original structure of the place. It favors the maintenance of soil fertility, minimizes erosion, and gives shelter and food to various species [57]. For the spatial heterogeneity to have a positive effect on the internal dynamics of agroecosystems it is necessary, on the one hand, for an inside farm design that attracts biological controllers (e.g., flower strips or beetle banks) (Altieri, Ponti, and Nicholls 2005; Nicholls and Altieri 2002) and on the other, the existence of nearby sources of organisms with enough internal complexity to provide the necessary control agents (Rusch, et al. 2016, 2010; Tscharntk, et al. 2012). Thus, spatial heterogeneity may enhance the configuration of the complex ecological networks needed for a successful ecological pest management program (Batáry, et al. 2011; Fahrig, et al. 2011; Rusch et al. 2016, 2010; Tejat, et al. 2002; Tscharntke, et al. 2002, 2012).

Ecosystem services derive from ecological processes that are, to a large extent, a consequence of the organisms that inhabit them, so it is vital to study and promote the conservation of biodiversity [58,59]. Ecosystem services lead to increased human well-being [1,60]. These include: i) natural assets or resources such as water or food, ii) the processes that regulate the conditions in which humans live, such as climate or erosion regulation, iii) experiences that directly benefit or indirectly to societies, such as the sense of belonging or recreation, and iv) the basic ecological processes that allow the previous ones to be provided [61,62]. Then the conservation of biodiversity is important because agricultural production depends on the vital ES it provides and because it also ensures stability and resilience, that is, the ecosystem's ability to recover after external stress.

Based on the results obtained, it is concluded that it is necessary to study biodiversity, not only the richness and abundance of plant and animal species but also include the relationships that occur between them [7,8,41,63] as well as the ecosystem services that derive from them and their interrelations. An important type of interaction between the components of an agroecosystem is the non-linear trophic relationships that determine the stability of the populations present [41,64]. The use of simple and practical indicators is vital to provide technicians, producers, and politicians with reliable and understandable information about the impacts and costs of incorporating different productive approaches [65-67].

The authors wish to express their thanks to R. Aguilar, for the English version of the manuscript. Special mention to express thanks to C. M. “Marco” van Strien y M. Tourn of Argelanda, C. Iturricastillo of The Isla, P. Biera, and C. Parra of Experimental Field INTA (Claromecó). We want to thank R. Fangauf and C. Istilart for their help in the determination of plant species. Thanks to D. Griffón, M. E. Mosca Torres, and N. Chacoff for the help with graphs and trophic networks. Finally, acknowledge the field collaborators: M. Murillo, A. Ribet, F. and C. Garaguzo. This study was partially financed by BASUR-1272409 (CEI Barrow), 2019-PD-E2-I038-002 (INTA), and IDEA WILD.

1. Daily GC. Nature's Services: Societal Dependence on Natural Ecosystems. Island Press, Washington, DC. 1997.
2. Díaz S, Lavorel S, Chapin FS, Tecco PA, Gurvich DE, Grigulis K. Functional diversity—at the crossroads between ecosystem functioning and environmental filters. In Terrestrial ecosystems in a changing world. Springer, Berlin, Heidelberg. 2007. 81-91.
3. Griffon D, Hernandez MJ. Some theoretical notes on agrobiodiversity: spatial heterogeneity and population interactions.Agroecology an sustainable food systems. 2019.
4. Foley JA, DeFries R, Asner GP, Barford C, Bonan G, Carpenter SR, Chapin FS, Coe MT, Daily GC, Gibbs HK, Helkowski JH, Holloway T, Howard EA, Kucharik CJ, Monfreda C, Patz JA, Prentice IC, Ramankutty N, Snyder PK. Global Consequences of Land Use. Science. 2005; 309:570-574.
5. Sarandón SJ. La agricultura como actividad transformadora del ambiente. El impacto de la agricultura intensiva de la Revolución Verde. En: Agroecología. El camino hacia una agricultura sustentable (Rd. Sarandon S.J.). La Plata, Ediciones Científicas Americanas. Capítulo. 2002; 1: 23-48.
6. Iermanó MJ, Sarandón SJ. Cultivo de soja para la producción de agrocombustibles (biodiesel) en la pampa húmeda: energía invertida en la regulación biótica. Libro de resúmenes de las XVIII Jornadas de Jóvenes Investigadores de la AUGM. 2010.
7. Altieri M A, Nicholls CI. Agroecología, teoría y práctica para una agricultura sustentable. México: Programa de las Naciones Unidas para el Medio Ambiente. 2000.
8. Altieri MA, Nicholls CI. Biodiversidad y manejo de plagas en agroecosistemas. Perspectivas agroecológicas No. 2. Icaria editorial, Barcelona. 2007; 245.
9. Chapin FS, Zavaleta ES, Eviner VT, Naylor RL, Vitousek PM, Reynolds HL, Hooper DU, Lavorel S, Sala OE, Hobbie SE, Mack MC, Díaz S. Consequences of changing biodiversity. Nature. 2000; 405: 234–242.
10. Díaz S, Fargione J, Chapin III FS, Tilman D. Biodiversity loss threatens human well-being. PLoS biology. 2006; 4(8): e277.
11. Viglizzo E. Agricultura, clima y ambiente en Argentina: tendencias, interacciones e impacto.En: Solbrig, O.T. y J. Adámoli (Coordinadores). Agro y ambiente: una agenda compartida para el desarrollo sustentable. Foro de la Cadena Agroindustrial Argentina, Buenos Aires. 2008. Capítulo 8.
12. Feinsinger P. El diseño de estudios de campo para la conservación. Editorial FAN, Santa cruz de la Sierra, Bolivia. 2003.
13. Simonetti JA, HuarecoI A. Uso de huellas para estimar diversidad y abundancia relativa de los mamíferos de la reserva de la biosfera - estación biológica del Beni, Bolivia. Mastozoología Neotropical. 1999; 6:139-144.
14. Parera A. Los mamíferos de la Argentina y la región austral de Sudamérica. Editorial El Ateneo. Buenos Aires, Argentina. 2011.
15. Abba AM, Udrizar Sauthier DE, Vizcaíno SF. Distribution and use of burrows and tunnels of Chaetophractus villosus (Mammalia, Xenarthra) in the eastern Argentinean Pampas. Acta Theriologica. 2005; 50: 115–124.
16. Abba AM, Vizcaíno SF, Cassini MH. Effects of land use on the distribution of three species of armadillos in the Argentinean Pampas. Journal of Mammalogy. 2007; 88: 502–507.
17. Taraborelli P, Borruel N, Sandobal AJ, Giannoni SM. Influence of biotic and abiotic factors on the structure of burrows of the cavy Microcavia australis. Mastozoología Neotropical. 2009; 16:411-421.
18. Gómez Villafañe I E, Miño M, Cavia R, Hodara K, Courtalón P, Suárez O, Busch M. Roedores. Guía de la Provincia de Buenos Aires. L.O.L.A., Buenos Aires, Argentina. 2005; 97.
19. Narosky T, Yzurieta D. Guía para la identificación de las Aves de Argentina y Uruguay. 2003. Vázquez Manzini Ediciones. Buenos Aires.
20. Fangauf RA, Winkler M. Aves de Claromecó. Edición de los autores, Claromecó. 1998.
21. Pekár S. Differential effects of formaldehyde concentration and detergent on the catching efficiency of surface active arthropods by pitfall traps. Pedobiologia. 2002; 46: 539-547.
22. Lietti M, Gamundi JC, Montero G, Molinari A, Bulacio V. Efecto de dos sistemas de labranza sobre la abundancia de artrópodos que habitan en el suelo. Ecología Austral. 2008; 18: 71-87.
23. Paleologos MF, Flores CC, Sarandon SJ, Stupino SA, Bonicatto MM. Abundancia y diversidad de la entomofauna asociada a ambientes seminaturales en fincas hortícolas de La Plata, Buenos Aires, Argentina. Revista Brasileira de Agroecologia. 2008; 3(1): 28-40.
24. Molina AR. La soja y sus insectos y otros organismos benéficos y perjudiciales. Tomo 2. 1er edición. Editor. Buenos Aires. 2008; 96.
25. Molina AR. El suelo y sus insectos y otros organismos benéficos y perjudiciales.1er edición. Editor Buenos Aires. 2008; 96.
26. Molina AR. El maíz y sus insectos y otros organismos perjudiciales. 1er edición. Editor Buenos Aires. 2010; 96.
27. Molina AR. La soja y sus insectos y otros organismos benéficos y perjudiciales. Tomo 2. 1er edición. Editor Buenos Aires. 2011; 96.
28. Molina AR. Trigo, cebada, colza y sus insectos y otros organismos perjudiciales y benéficos. 1er edición. Editor Buenos Aires. 2011; 96.
29. Braun-Blanquet J. Fitososociología. Bases para el estudio de las comunidades vegetales 1: 819. Blume, Madrid. 1979.
30. Knapp R. Considerations on quantitative parameters and qualitative attributes in vegetation and phytosociological relevés. In: R. Knapp (ed.), Sampling methods and taxon analysis in vegetation science. 1984; 77-100.
31. Merle Farinos H, Ferriol Molina M. El inventario fitosociológico. Universidad Politécnica de Valencia. 2012; 11.
32. Alcaraz Ariza FJ. El método fitosociológico. Geobotánica, Tema 11. Universidad de Murcia. 2013; 27.
33. Carrasco N, Zamora M, Cerdá E, Pusineri L, Barbera A, De Luca L, Pérez R. Agroecología en Cultivos Extensivos en el Centro Sur Bonaerense. Manejo a campo y servicios ecosistémicos. V Congreso Latinoamericano de Agroecología, La Plata, Argentina. 2015.
34. Cabrera AL, Zardini EM. Manual de la flora de los alrededores de Buenos Aires. ACME. 1978.
35. Dimitri MJ. Enciclopedia argentina de agricultura y jardinería. ACME. 1978.
36. Lamberto SA, Valle AF, Aramayo EM, Andrada AC. Manual Ilustrado de las plantas silvestres de la región de Bahía Blanca. Departamento de Agronomía, Universidad Nacional del Sur Ed. Bahía Blanca, Argentina. 1997.
37. Zuloaga FO, Morrone O, Belgrano M. Catálogo de las plantas vasculares del Cono Sur (Argentina, Sur de Brasil, Chile, Paraguay y Uruguay). Monographs in Systematic Botany from the Missouri Botanical Garden. 2008; 107.
38. Villamil CB, Martínez GA. Plantas silvestres del Partido de Tres Arroyos. INTA. 2014; 164.
39. Chao A, Gotelli NJ, Hsieh TC, Sander EL, Ma KH, Colwell RK, Ellison AM. Rarefaction and extrapolation with Hill numbers: a framework for sampling and estimation in species diversity studies. Ecol Monogr. 2014; 84:45-67.
40. Magurran A. Ecological diversity and its measurement. Princeton University Press. Princeton, New Jersey. 1988; 179.
41. Griffon DB. Estimación de la biodiversidad en agroecología. Agroecología. 2008; 3: 25-31.
42. Team RC. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. 2013.
43. Griffon D, Rodríguez EG. En lo micro y en lo macro. Sobre la importancia de las interacciones en la agroecología. Acta Biol Venez 2017; 37: 89-119.
44. Costa LDF, Rodrigues FA, Travieso G, Boas PRV. Characterization of complex networks: a survey of measurements. Advances in Physics. 2007; 56: 167-242.
45. Benton TG, Vickery JA, Wilson JD. Farmland biodiversity: Is habitat heterogeneity the key? Trends in Ecology & Evolution. 2003; 18: 182-188.
46. Hendrickx F, Maelfait JP, Van Wingerden W, Schweiger O, Speelmans M, Aviron S. How landscape structure, land-use intensity and habitat diversity affect components of total arthropod diversity in agricultural landscapes. Journal of Applied Ecology, 2007; 44: 340-351.
47. Bilenca D, Codesido M, González Fisher C, Pérez Carusi L. Impactos de la actividad agropecuaria sobre la biodiversidad en la ecorregión pampeana: impactos de la expansión agrícola y de la intensificación de la agricultura y la ganadería de campo, con algunas recomendaciones de manejo para su su mitigación. INTA, Buenos Aires. 2009.
48. Krupke CH, Hunt GJ, Eitzer BD, Andino G, Given K. Multiple routes of pesticide exposure for honey bees living near agricultural fields. PLoS One. 2012;7(1):e29268. doi: 10.1371/journal.pone.0029268. Epub 2012 Jan 3. PMID: 22235278; PMCID: PMC3250423.
49. Egan JF, Bohnenblust E, Goslee S, Mortensen D, Tooker J. Herbicide drift can affect plant and arthropod communities. Agriculture, Ecosystems & Enviroment. 2014;185: 77-87.
50. Donal PF, Gree RE, Heath MF. Agricultural intensification and the collapse of Europe's farmland bird populations. Proc Biol Sci. 2001 Jan 7;268(1462):25-9. doi: 10.1098/rspb.2000.1325. PMID: 12123294; PMCID: PMC1087596.
51. López MA. Comparación de dos sistemas agrícolas en el sudeste bonaerense mediante uso de indicadores ambientales. Tesis de Licenciatura para la Facultad de Ciencias Humanas, Universidad Nacional del Centro de la Provincia de Buenos Aires. 2016;117.
52. Salgado-Negret B, Paz H. Escalando de los rasgos funcionales a procesos poblacionales, comunitarios y ecosistémicos. En: La ecología funcional como aproximación al estudio, manejo y conservación de la biodiversidad: protocolos y aplicaciones. Instituto de Investigación de Recursos Biológicos Alexander von Humboldt. Bogotá, D. C. Colombia, (Ed. Salgado-Negret, B.), 2015; 12-35.
53. Calvente AM. Resiliencia: un concepto clave para la sustentabilidad. UAIS Sustentabilidad, 2007; 1-4.
54. Perrings C. Resilience and sustainable development. Environment and Development Economics. Editorial Board. 2006; 417.
55. Folke C, Holling CS, Perrings C. Biological diversity, ecosystems and the human scale. Ecological Applications2002; 6: 1018-1024.
56. Sarandón SJ, Flores CC. La insustentabilidad del modelo agrícola actual. En: Agroecología: bases teóricas para el diseño y manejo de agroecosistemas sustentables (Eds: SJ Sarandón y CC Flores). Capítulo. 2014; 1:13-41 pp.
57. Alonso J. Los sistemas silvopastoriles y su contribución al medio ambiente. Revista Cubana de Ciencia Agrícola. 2011;45.
58. Hooper DU, Chapin FSIII, Ewel JJ, Hector A, Inchausti P, Lavorel S, Lawton JH, Lodge DM, Loreau M, Naeem S, Schmid B, Setӓlӓ H, Symstad AJ, Vandermeer J, Wardle DA. Effects of biodiversity on ecosystem functioning: a consensus of current knowledge. Ecological Monographs, 2005; 75:3-35.
59. Díaz S, Tilman, D, Fargione JE, Chapin III FS, Dirzo R, Kitzberger T, Wilby A. Biodiversity regulation of ecosystem services. Ecosystems and human well-being-Current status and trends. RM Hassan, R. Scholes, and N. Ash. Island Press, 2005; 1: 917.
60. Quijas S, Schmid B, Balvanera P. Plant diversity enhances provision of ecosystem services: a new synthesis. Basic and Applied Ecology. 2010; 11(7): 582-593.
61. MEA. Ecosystems and Human Well-being: a Framework for Assessment. Millennium Ecosystem Assessment. Island Press, Washington, D.C. EE.UU. 2003.
62. Maass JM, Balvanera P, Castillo A, Daily GC, Mooney HA. Ecosystem services of tropical dry forests: insights from long-term ecological and social research on the Pacific Coast of Mexico. Ecology and Society. 2005; 10:17.
63. Vázquez Moreno L, Matienzo Brito Y. Metodología para la caracterización rápida de la diversidad biológica en las fincas, como base para el manejo agroecológico de plagas. Instituto de Investigaciones de Sanidad Vegetal (INISAV). Ministerio de la Agricultura. La Habana, Cuba. 2010; 12.
64. Griffon D. Lo pequeño es hermoso: Una alternativa para la solución de la crisis agrícola. 2008.
65. Sarandón SJ, Flores CC. La Agroecología: el enfoque necesario para una agricultura sustentable. Agroecología: bases teóricas para el diseño y manejo de agroecosistemas sustentables (Eds. S.J. Sarandón y C.C. Flores) Editorial de la Universidad Nacional de La Plata. 2014. Capítulo 2: 42-69 pp.
66. Tittonell P. Ecological intensification of agriculture sustainable by nature. Environmental Sustainability 2014; 8: 53-61.
67. Paleologos MF, Sarandón SJ. Capítulo 9. Principios de ecología de poblaciones. En: Agroecología: bases teóricas para el diseño y manejo de agroecosistemas sustentables (Eds: S.J. Sarandón y C.C. Flores). 1a ed. La Plata, Universidad Nacional de La Plata. 2014. 235-259.
